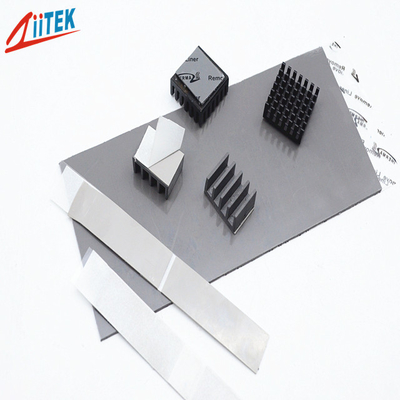

3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK

3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
video play

Large Image :  3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF5120-30-11US
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Hardness: 20 Shore 00 Specific Gravity: 2.9 G/cc
Dielectric Breakdown Voltage: >5000 VAC Fire Rating: 94-V0
Construction & Compostion: Ceramic Filled Silicone Rubber Tensile Strength: 40 Psi
Highlight:

3.0mmT silicone sheets

,

UL recognized silicone sheets

,

3.0 W/MK silicone sheets

3.0mmT UL recognized silicone sheets For Micro heat pipe thermal solutions 3.0 W/MK


  The TIF5120-30-11US Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

TIF500-30-11US Datasheet-REV02.pdf

Features:
> Good thermal conductive: 3.0 W/mK
>Thickness:3.0mmT

>Easy release construction

>Electrically isolating
>High durability

Applications:

>Micro heat pipe thermal solutions

>Automotive engine control units

>Heat pipe thermal solutions

>Memory Modules

>LED Controller
>LED Ceilinglamp



Typical Properties of TIF5120-30-11US Series
Color

Gray

Visual Composite Thickness  hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm

0.55

20mils / 0.508 mm

0.82

Specific Gravity

2.9 g/cc

ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11

Thickness

3.0mmT

***

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45

Hardness
20 (Shore 00) ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05

Continuos Use Temp
-40 to 160℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56

Dielectric Constant
4.0 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77

Volume Resistivity
1.0X1012
Ohm-meter
ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14


Thermal conductivity
3.0W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)


Consult the factory to alternate thickness.
