1.5W/MK Thermally Conductive Pad 2.0mmT RoHS Compliant For Micro Heat Pipe

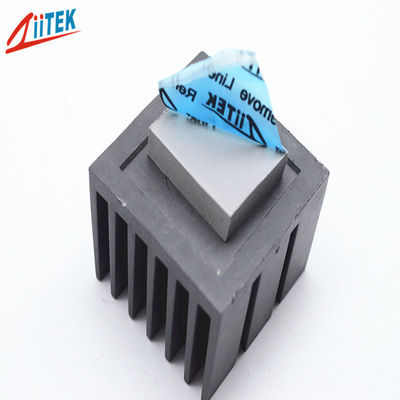

Large Image : 1.5W/MK Thermally Conductive Pad 2.0mmT RoHS Compliant For Micro Heat Pipe

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF180-02S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Products Name:	1.5W/MK Thermally Conductive Pad 2.0mmT RoHS Compliant For Micro Heat Pipe	Thickness:	2.0mmT
Color:	Gray White	Continuos Use Temp::	-40 To 200℃
Fire Rating:	94-V0	Keywords:	Thermally Conductive Pad
Application:	Micro Heat Pipe	Density:	2.3 G/cm³
Highlight:	1.5W/MK Thermally Conductive Pad , Micro Heat Pipe Thermally Conductive Pad , 2.0mmT heat conductive rubber pad

1.5W/MK Thermally Conductive Pad 2.0mmT RoHS Compliant For Micro Heat Pipe

Ziitek TIF^®1100-02S Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features:

> Available in varies thicknesses 1.5W/mK
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant

Applications

> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices

Typical Properties of TIF^®100-02S Series
Property	Value		Test method
Color	Gray white		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	1.5		ASTM D5470
	1.5		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
