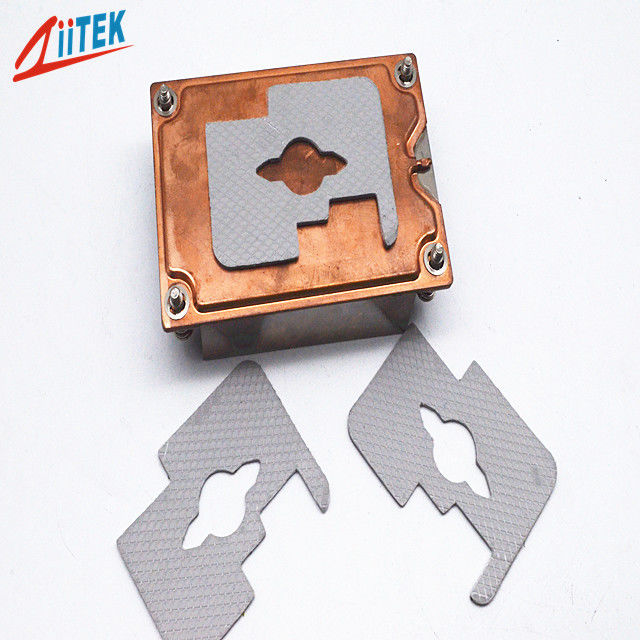

Manufacture Ultra Soft Gray Thermally Conductive Pad For LED Light

Manufacture Ultra Soft Gray Thermally Conductive Pad For LED Light
Manufacture Ultra Soft Gray Thermally Conductive Pad For LED Light
video play

Large Image :  Manufacture Ultra Soft Gray Thermally Conductive Pad For LED Light

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF160-02S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Product Name: Manufacture Ultra Soft Gray Thermally Conductive Pad For LED Light Thickness: 1.5mmT
Specific Gravity: 2.3g/cm³ Hardness: 65/45 Shore 00
Volume Resistivity: ＞1.0X10¹² Ohm-meter Fire Rating: 94-V0
Keywords: Thermally Conductive Pad Application: LED Light
Highlight:

1.5mmT Thermally Conductive Pad

,

Compressible Thermally Conductive Pad

,

Gray White Thermal Conductive Pad

Manufacture Ultra Soft Gray Thermally Conductive Pad For LED Light



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

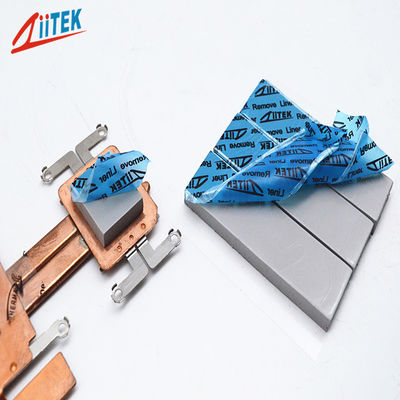

The TIF®160-02S Series is an extremely soft gap filling material rated at a thermal conductivity of  1.5W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. Ziitek TIF®160-02S is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.



Features:



> Moldability for complex parts 1.5 W/mK
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts


Applications



> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF®100-02S Series
Property Value Test method
Color Gray white Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.3 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.5) (0.75~5.0)
Hardness 65 Shore 00 45 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ***
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 1.5 ASTM D5470
1.5 ISO22007
Fire rating V-0 UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Manufacture Ultra Soft Gray Thermally Conductive Pad For LED Light 0


Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



FAQ:



Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
