Product Details:
Payment & Shipping Terms:
|
Products Name: | Ultra Soft Thermally Conductive Sheet Thermal Gap Pad Thermal Gap Filler For Low Stress Applications | Thermal Conductivity: | 1.5W/m-K |
---|---|---|---|
Thickness: | 0.5mmT | Flame Rating: | 94-V0 |
Hardness: | 60 Shore 00 | Specific Gravity: | 2.3g/cc |
Outgassing: | 0.35% | Keywords: | Thermal Gap Pad |
Highlight: | 0.5mmT Thermally Conductive Foam Pad,Low Stress Applications Thermally Conductive Pad,Thermal Conductive Pad 2.23G/CC |
Ultra Soft Thermally Conductive Sheet Thermal Gap Pad Thermal Gap Filler For Low Stress Applications
With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

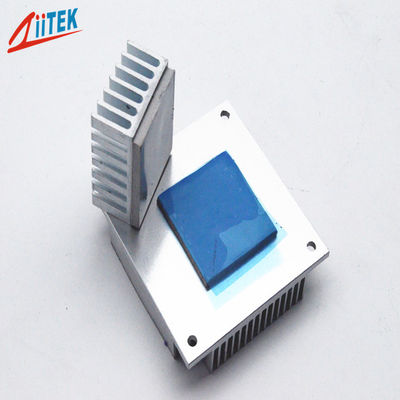

The TIF120-02F Series thermally conductive interface materials are applied to fillthe air gaps between the heating elements and the heat dissipation fins or themetal base.Their flexibility and elasticity make them suited to coat very unevensurfaces. Heat can transmit to the metal housing or dissipation plate from theheating elements or even the entire PCB, which effecitly enhances the efficiencyand life-time of the heat-generating electronic components.
Features:
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
Applications
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
Typical Properties of TIF120-02F Series | ||||
Color | Gray | Visual | Composite Thickness | hermalImpedance |
@10psi | ||||
(℃-in²/W) | ||||
Construction &Compostion | Ceramic filled silicone elastomer | *** | 10mils / 0.254 mm | 0.48 |
20mils / 0.508 mm | 0.56 | |||
Specific Gravity | 2.3 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.71 |
40mils / 1.016 mm | 0.8 | |||
Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 0.91 |
60mils / 1.524 mm | 0.94 | |||
Hardness | 60 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 1.05 |
80mils / 2.032 mm | 1.15 | |||
Tensile Strength | 40 psi | ASTM D412 | 90mils / 2.286 mm | 1.25 |
100mils / 2.540 mm | 1.34 | |||
Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 1.43 |
120mils / 3.048 mm | 1.52 | |||
Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.63 |
140mils / 3.556 mm | 1.71 | |||
Dielectric Constant | 4.0 MHz | ASTM D150 | 150mils / 3.810 mm | 1.81 |
160mils / 4.064 mm | 1.89 | |||
Volume Resistivity | 4.0X10" Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.98 |
180mils / 4.572 mm | 2.07 | |||
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 2.14 |
200mils / 5.080 mm | 2.22 | |||
Thermal conductivity | 1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
