Customized Self Adhesive High Heat Transfer Thermal Pad For Smartphones Laptops

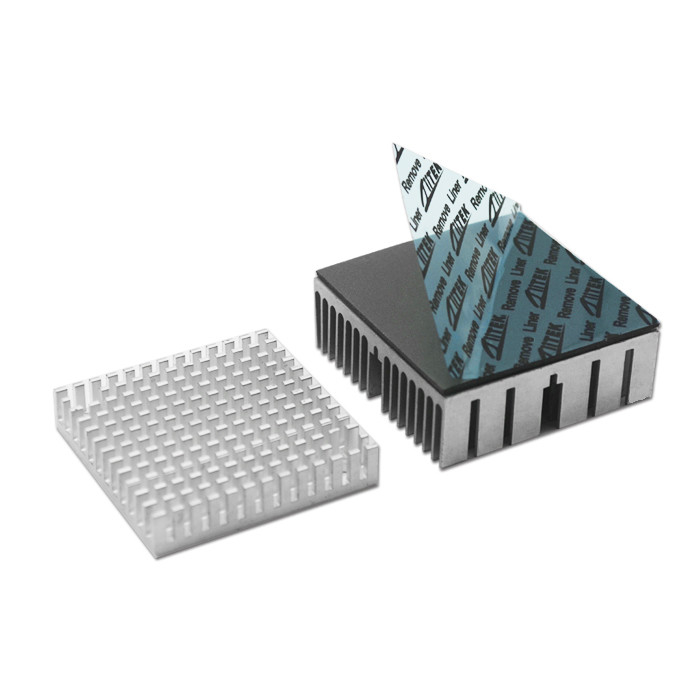

Large Image : Customized Self Adhesive High Heat Transfer Thermal Pad For Smartphones Laptops

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-18-11E

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	Customized Self Adhesive High Heat Transfer Thermal Pad For Smartphones Laptops	Keywords:	Thermal Pad
Thermal Conductivity& Compostion:	1.8 W/m-K	Size:	Customized
Thickness:	0.010"(0.25mm)~0.200"(5.0mm)	Color:	Dark Gray
Hardness:	35 Shore 00	Application:	Smartphones Laptops
Highlight:	self adhesive thermal gap filler pad , 1mm high conductivity thermal pad , 1.8W/mK high performance thermal pads

Customized Self Adhesive High Heat Transfer Thermal Pad For Smartphones Laptops

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

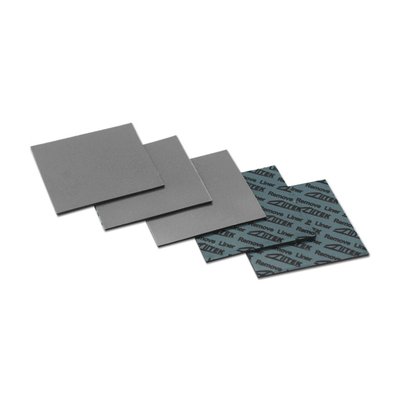

Customized Self Adhesive High Heat Transfer Thermal Pad For Smartphones Laptops 0

The TIF^®100-18-11E is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features

> Available in varies thicknesses 1.8 W/mK
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance

Applications

> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Typical Properties of TIF^®100-18-11E Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.5		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.0)
Hardness	65 Shore 00	35 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	1.8		ASTM D5470
	1.8		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16" X16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
