Self-Adhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 For LED Bulb Lights

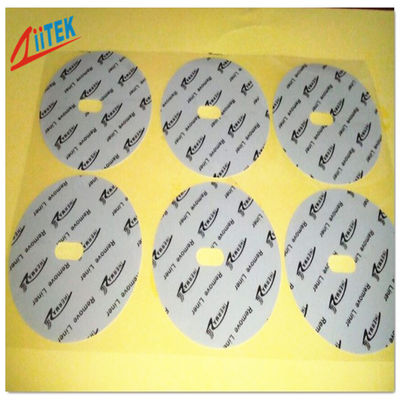

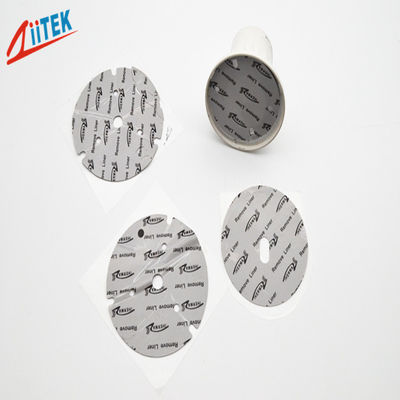

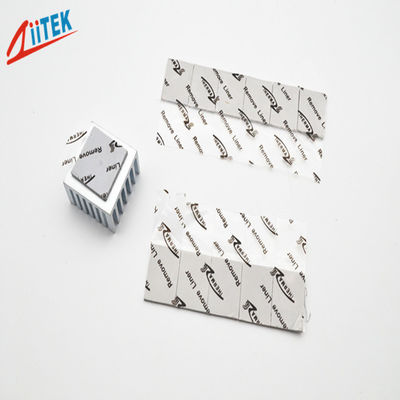

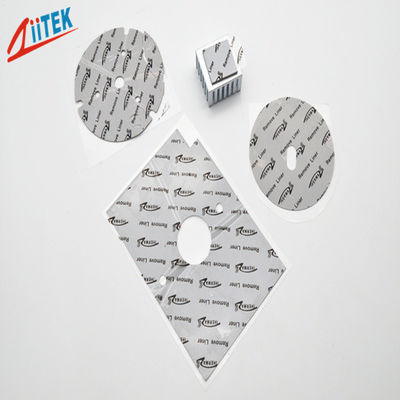

Large Image : Self-Adhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 For LED Bulb Lights

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF140-02S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	Self-Adhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 For LED Bulb Lights	Thermal Conductivity& Compostion:	1.5 W/m-K
Density(g/cm³）:	2.3	Keywords:	Thermal Gap Pad
Color:	Gray White	Recommended Operating Temperature ("C):	-40 To 200℃
Hardness:	65/45 Shore 00	Application:	AI Processors AI Servers,LED Bulb Lights
Highlight:	high temperature phase change materials , thermal conductivity silicone , self adhesive thermal gap filler pads

Self-Adhesive Silicone 1mm T Thermal Gap Pad 45 Shore 00 For LED Bulb Lights

Ziitek TIF^®1100-02S Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features:

> Good thermal conductive: 1.5 W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF^®100-02S Series
Property	Value		Test method
Color	Gray white		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	1.5		ASTM D5470
	1.5		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Product Specifications

Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
