3W/M.K Die Cutting Custom Size Silicone Heat Insulation Thermal Conductive Pad For Switching Power

3W/M.K Die Cutting Custom Size Silicone Heat Insulation Thermal Conductive Pad For Switching Power

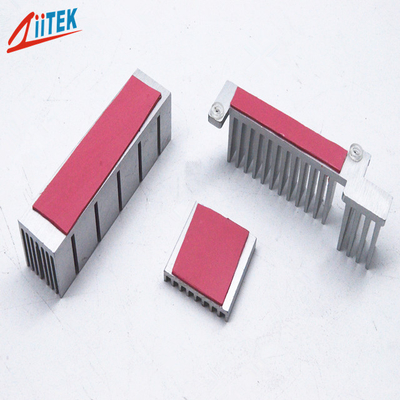

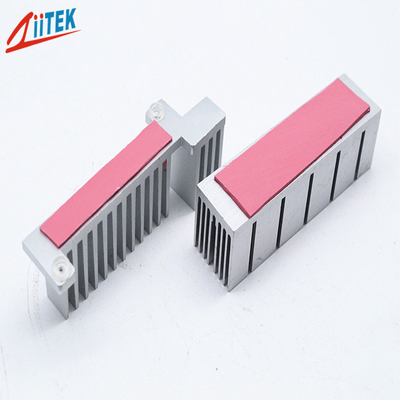

The TIF140-30-50E is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features:

> Outstanding thermal performance

> High tack surface reduces contact resistance

> RoHS compliant

> UL recognized

> Easy release construction

> Electrically isolating

> High durability

Applications:

> CPU

> Display card

> Mainboard/mother board

> Notebook

> Power supply

> Heat pipe thermal solutions

> Memory Modules

> Mass storage devices

> Automotive electronics

> Set top boxes

> Audio and video components

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied.



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
