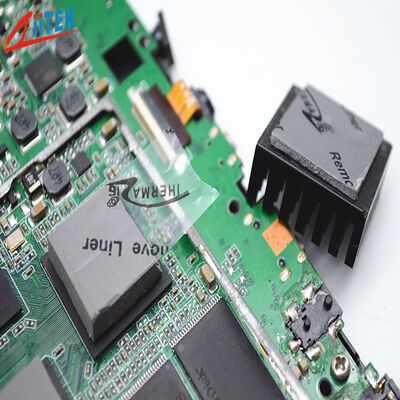

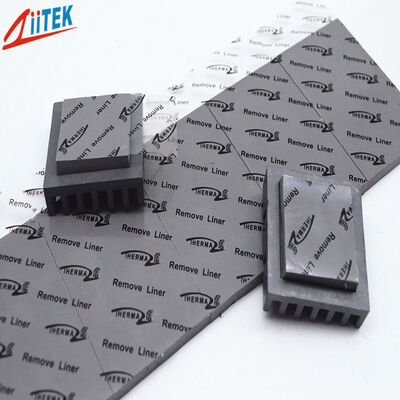

UL And RoHs Certificated High Conductivity 3W Self Adhesive Thermal Conductive Pad For Computer CPU/GPU Cooling
The TIF®100-30-11E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Features:
> High thermal conductivity: 3 W/mK
> Good sotness and fillability
> Self-adhesive wthout the need for additional surface adhesives
> Good insulation performance
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®100-30-11E Series |
| Property |
Value |
Test method |
| Color |
Dark Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.0 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020
(0.25~0.5)
|
0.030~0.200
(0.75~5.0)
|
ASTM D374 |
| Hardness (Shore 00) |
65 |
35 |
ASTM 2240 |
| Continuos Use Temp |
-40 to 200℃ |
*** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant |
7.0 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012Ohm-meter |
ASTM D257 |
| Thermal Conductivity (W/m-K) |
3.0 |
ASTM D5470 |
| 3.0 |
ISO22007 |
| Fire rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2(Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
