Payment & Shipping Terms:
|Tensile Strength:||40 Psi||Thermal Conductivity:||1.5 W/m-K|
|Hardness:||27 Shore 00||Product Name:||TIF140-15U|
|Dielectric Constant:||5.5 MHz||Fire Rating:||94-V0|
thermally conductive pad,
thermal conductive material,
27 Shore00 thermal silicone pad

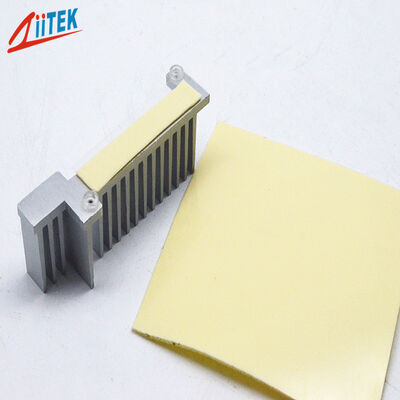

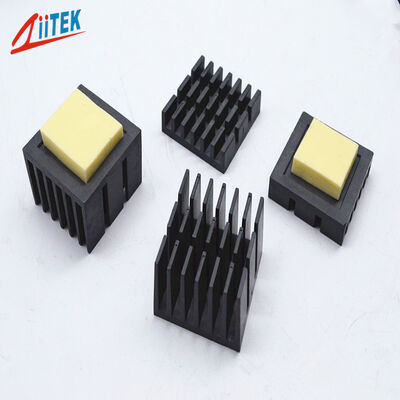

New products silicone thermal conductive gap filler pad 27 Shore00 TIF140-15U 1.5w for LED modules
The TIF140-15U Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
> Good thermal conductive: 1.5 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
|Micro heat pipe|
|Automotive engine control units|
|Cooling components to chassis frame or other mating components|
|Home and small office network equipment|
|Handheld portable electronics|
|Plasma supply panels|
|Semiconductor automated test equipment (ATE)|
|Heat pipe thermal solutions|
|Mass storage devices|
Typical Properties of TIF140-15U Series
Ceramic filled silicone rubber
|***||10mils / 0.254 mm|
|20mils / 0.508 mm|
30mils / 0.762 mm
40mils / 1.016 mm
50mils / 1.270 mm
60mils / 1.524 mm
|27 Shore 00||ASTM 2240|
70mils / 1.778 mm
80mils / 2.032 mm
90mils / 2.286 mm
100mils / 2.540 mm
Continuos Use Temp
|-50 to 200℃|
110mils / 2.794 mm
120mils / 3.048 mm
Dielectric Breakdown Voltage
|>10000 VAC||ASTM D149|
130mils / 3.302mm
140mils / 3.556 mm
|5.5 MHz||ASTM D150|
150mils / 3.810 mm
160mils / 4.064 mm
|7.8X10" Ohm-meter||ASTM D257|
170mils / 4.318 mm
180mils / 4.572 mm
190mils / 4.826 mm
200mils / 5.080 mm
|1.5 W/m-K||ASTM D5470||Visua l/ ASTM D751||ASTM D5470|
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
