China Manufacturer 2W Grey Thermal Conductive Pad For Electrical Components

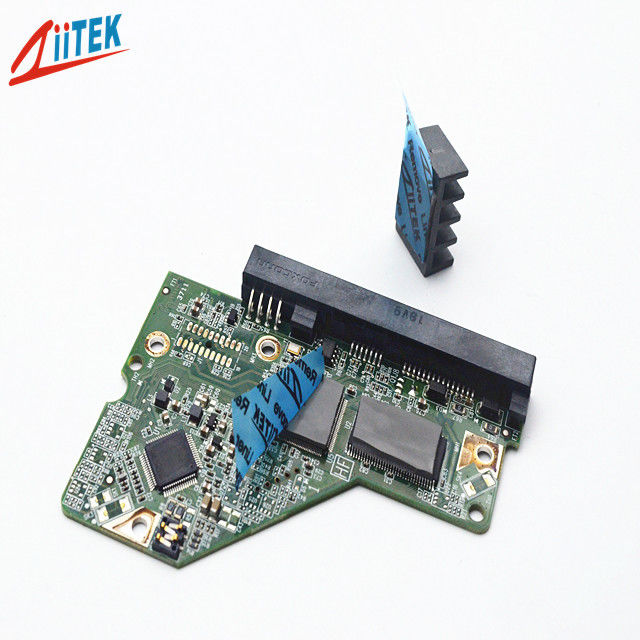

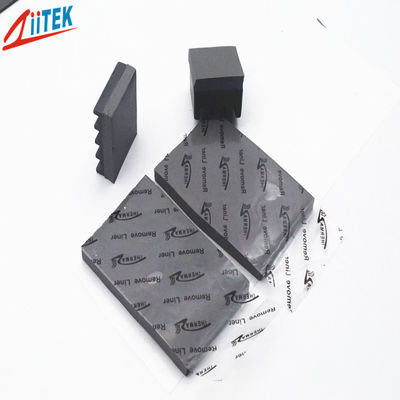

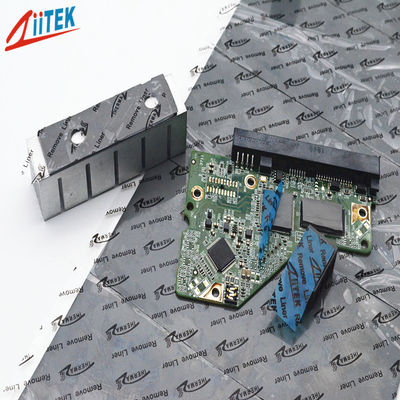

Large Image : China Manufacturer 2W Grey Thermal Conductive Pad For Electrical Components

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF140-20-11E

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Prodcuts Name:	China Manufacturer 2W Grey Thermal Conductive Pad For Electrical Components	Color:	Grey
Thickness:	1.0mmT	Thermal Conductivity:	2.0W/m-K
Hardness:	35 Shore 00	Density:	2.55g/cm³
Recommended Operating Temperature:	-40 To 200℃	Keywords:	Thermal Conductive Pad
Application:	Electrical Components
Highlight:	thermally conductive pad , thermal conductive material , Thermal Conductive Pad 35 Shore 00

China Manufacturer 2W Grey Thermal Conductive Pad For Electrical Components

The TIF^®140-20-11E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features

> Good thermal conductive: 2 W/mK
> Self-adhesive without the need for additional surface adhesive
> Good softness and fillability
> Available in varies thickness
> Good insulation performance

Applications

> Cpu heat sinking
> High speed mass storage drives
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of TIF^®140-20-11E Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.55		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.0)
Hardness	65 Shore 00	35 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @ 1MHz	5.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	2.0W/m-K		ASTM D5470
	2.0W/m-K		ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm)
with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.
