2W/MK Premium Soft Silicone Thermal Pad For Advanced Cooling Needs

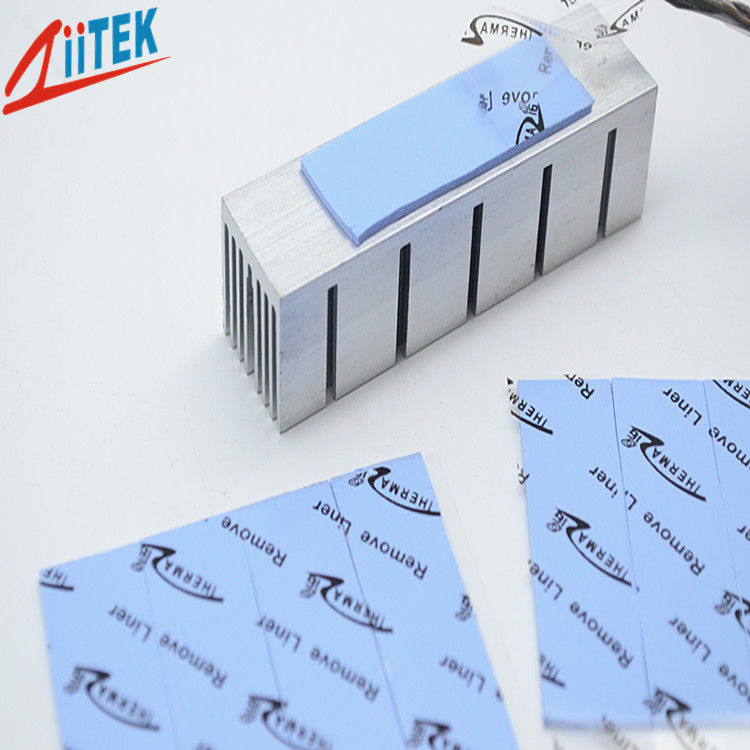

Large Image : 2W/MK Premium Soft Silicone Thermal Pad For Advanced Cooling Needs

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-20-05S
Document:	TIF100-20-05S_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	10000/day

Contact Now

2W/MK Premium Soft Silicone Thermal Pad For Advanced Cooling Needs

Description

Products Name:	2W/MK Premium Soft Silicone Thermal Pad For Advanced Cooling Needs	Thickness:	2mmT
Thermal Conductivity:	2.0W/m-K	Hardness:	65/45 Shore00
Density:	2.65g/cm³	Keywords:	Thermal Pad
Application:	Cooling Conmponents	Sample:	Sample Available
Highlight:	thermally conductive pad , thermal conductive material , thermal conductive silicone pad 2w

2W/MK Premium Soft Silicone Thermal Pad for Advanced Cooling Needs

The TIF^®100-20-05S is an extremely soft gap filling material rated at a thermal conductivity of 2.0W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. Ziitek TIF^®100-20-05S is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.

Features

> Good thermal conductive: 2.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS And UL compliant

Applications

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF^®100-20-05S Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.65		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	0.25~0.50	0.75~5.00
Hardness(Shore 00)	65	45	ASTM 2240
Recommended Operating Temperature (℃)	-40 to 200		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant @1Mhz	4.7		ASTM D150
Volume Resistivity(Ohm-cm)	＞1.0X10¹²		ASTM D257
Thermal Conductivity (W/m-K)	2.0		ASTM D5470
	2.0		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications

Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
