Stable Chemical Performance Light 3W Thermal Conductive Gap Filler Pad For Cpu

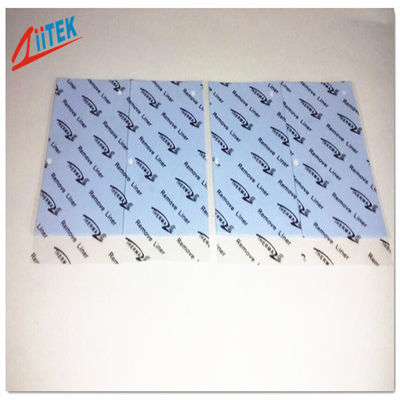

Large Image : Stable Chemical Performance Light 3W Thermal Conductive Gap Filler Pad For Cpu

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-30-23E

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 days
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Products Name:	Stable Chemical Performance Light 3W Thermal Conductive Gap Filler Pad For Cpu	Color:	The Light Blue
Thermal Conductivity:	3 W/m-K	Hardness:	35 Shore 00
Application:	Cpu	Dielectric Breakdown Voltage:	>10000 VAC
Fire Rating:	94-V0
Highlight:	thermally conductive pad , thermal conductive material , thermal gap filler pad 3W

Stable Chemical Performance Light 3W Thermal Conductive Gap Filler Pad For Cpu

The TIF^®100-30-23E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 3 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> IGBTs
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics

Typical Properties of TIF^®100-30-23E Series
Color	The light blue	Visual
Construction & Compostion	Ceramic filled silicone rubber	***

Specific Gravity	2.50 g/cc	ASTM D297

Heat Capacity	1 l/g-K	ASTM C351

Hardness	35 Shore 00	ASTM 2240

Tensile Strength	48 psi	ASTM D412

Continuos Use Temp	-50 to 200℃	***

Dielectric Breakdown Voltage	>10000 VAC	ASTM D149

Dielectric Constant	10.2 MHz	ASTM D150

Volume Resistivity	7.3X10¹² Ohm-meter	ASTM D257

Fire rating	94 V0	equivalent UL

Thermal conductivity	3 W/m-K	ASTM D5470

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
