Ziitek 1.8W High Reliability PCM Phase Change Material For CPU And GPU

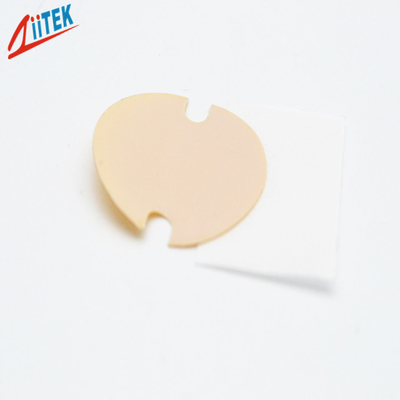

Large Image : Ziitek 1.8W High Reliability PCM Phase Change Material For CPU And GPU

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIC800K

Payment & Shipping Terms:

Minimum Order Quantity:	1000PC
Price:	USD 0.03PCS
Packaging Details:	1000PCS/bag
Delivery Time:	2-3Works
Supply Ability:	100000PCS/DAY

Contact Now

Detailed Product Description

Product Name:	Phase Changing Materials	Color:	Light Amber
Thermal Conductivity:	1.8 W/mK	Phase Change Softening Temperature:	50℃~60℃
Work Temperature:	-40 °C To 180 °C	Key Words:	Phase Change Material
Specific Gravity:	2.0g/cc
Highlight:	thermal insulating materials , heat sensitive materials , 1.8W Phase Changing Materials

Ziitek 1.8W High Reliability PCM Phase Change Material For CPU And GPU

The TIC™800K Series products is a high thermal conduction and dielectric performance insulator pad consisting of a ceramic filled low melting point compound coated on MT Kapton film.

At 50℃,TIC™800K Series surface begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.

Feature

Naturally tacky at room temperature, no adhesive required

No heat sink preheating required

Low thermal resistance

Ease of use for high volume manufacturing

High thixotropic index

Dry to the touch for pre-apply applications

High thermal reliability, minimal pump out

Re-flow compatible

Cost Effective

Used where electrical isolation is not required

Low volatility – less than 1%

Easy to handle in the manufacturing environment

Flows but doesn’t run like grease

Available in custom die-cut shapes, kiss-cut on rolls

RoHS Compliant

Application

High Frequency Microprocessors

Notebook

Computer Serves

Memory Modules

Cache Chips

IGBTs

COB Led

Desktop PCs

Microprocessors

Chipsets

Graphic Processing Chips

Servers

Memory Modules

Power semiconductors

Power conversion modules

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

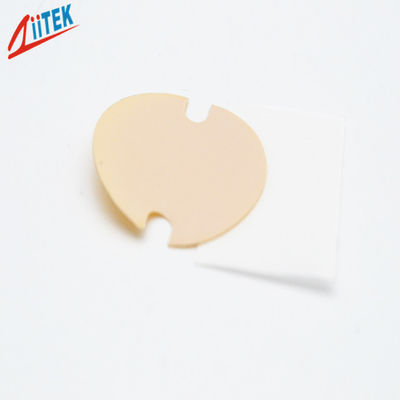

Ziitek 1.8W High Reliability PCM Phase Change Material For CPU And GPU 0

Typical Properties of TIC™800K series
Product Name	TIC™805K	TIC™806K	TIC™808K	Test Method
Color	Light Amber			Visual
Composite Thickness	0.004"/0.102mm	0.005"/0.127mm	0.006"/0.152mm	ASTM D374
MT Kapton ® Thickness	0.001"/0.025mm	0.001"/0.025mm	0.002"/0.050mm	ASTM D374
Total Thickness	0.005"/0.127mm	0.006"/0.152mm	0.008"/0.203mm	ASTM D374
Specific Gravity	2.0 g/cc			ASTM D297
Heat Capacity	1 l/g-K			ASTM C351
Tensile Strength	>13.5 Kpsi	>13.5 Kpsi	>17.8 Kpsi	ASTM D412
Continuous Use Temp	(-58 to 266℉) / (-50 to 130℃)			***
Dielectric Breakdown Voltage	>4000 VAC	>5000 VAC	>6000 VAC	ASTM D149
Dielectric Constant	1.8 MHz			ASTM D150
Volume Resistivity	3.5*10^14Ohm-meter			ASTM D257
Thermal conductivity	1.6 W/mK			ASTM D5470
Thermal Impedance@50psi	0.12℃-in²/W	0.13℃-in²/W	0.16℃-in²/W	ASTM D5470

Standard Thicknesses:

0.005"(0.127mm), 0.006"(0.152mm), 0.008"(0.203mm)
Individual die cut shapesand and custom thickness can be supplied.Please contact us for confirming.

Standard Sizes :
10" x 100'(254mm x 30.48M)lndividual die cut shapes can be supplied.

Peressure Sensitive Adhesive :
Peressure Sensitive Adhesive is not applicable for TICTM800K series products.

Reinforcement:
TICTM80oK series sheets are KaptonR reinforced.
