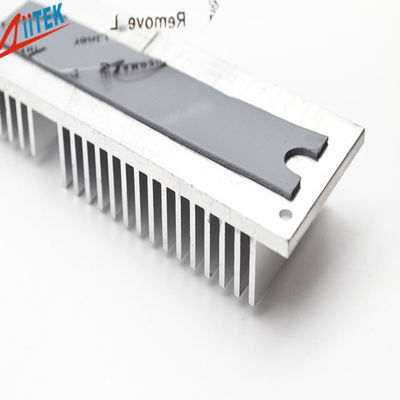

Good Thermal Performance 35 Shore00 Grey 4.0W Silicone Thermal Gap Pad 40 Psi For Telecommunication Hardware

Good Thermal Performance 35 Shore00 Grey 4.0W Silicone Thermal Gap Pad 40 Psi For Telecommunication Hardware
Good Thermal Performance 35 Shore00 Grey 4.0W Silicone Thermal Gap Pad 40 Psi For Telecommunication Hardware
video play

Large Image :  Good Thermal Performance 35 Shore00 Grey 4.0W Silicone Thermal Gap Pad 40 Psi For Telecommunication Hardware

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF130-40-11E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 days
Supply Ability: 100000pcs/day
Detailed Product Description
Tensile Strength: 40 Psi Thermal Conductivity: 4.0W/m-K
Hardness: 35 Shore 00 Specific Gravity: 2.50 G/cc
Dielectric Constant: 7.5 MHz Fire Rating: 94-V0
High Light:

heatsink thermal pad

,

thermal conductive pad

Good thermal performance 35 shore00 grey 4.0W silicone Thermal conductive Pad for Telecommunication hardware

Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

 The TIF130-40-11E Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:
>  Good thermal conductive: 4.0W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Moldability for complex parts
Applications:
>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  IT infrastructure
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)



Typical Properties of TIF130-40-11E Series
Color

Gray

VisualComposite ThicknesshermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***10mils / 0.254 mm

0.48

20mils / 0.508 mm

0.56

Specific Gravity

2.50 g/cc

ASTM D297

30mils / 0.762 mm

0.71

40mils / 1.016 mm

0.80

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

0.91

60mils / 1.524 mm

0.94

Hardness
35 Shore 00ASTM 2240

70mils / 1.778 mm

1.05

80mils / 2.032 mm

1.15

Tensile Strength


40 psi

ASTM D412

90mils / 2.286 mm

1.25

100mils / 2.540 mm

1.34

Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.43

120mils / 3.048 mm

1.52

Dielectric Breakdown Voltage
>10000 VACASTM D149

130mils / 3.302mm

1.63

140mils / 3.556 mm

1.71

Dielectric Constant
7.5 MHzASTM D150

150mils / 3.810 mm

1.81

160mils / 4.064 mm

1.89
Volume Resistivity
7.8X10" Ohm-meterASTM D257

170mils / 4.318 mm

1.98

180mils / 4.572 mm

2.07

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

2.14

200mils / 5.080 mm

2.22

Thermal conductivity
4.0 W/m-KASTM D5470Visua l/ ASTM D751ASTM D5470




Standard Thicknesses:
0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Good Thermal Performance 35 Shore00 Grey 4.0W Silicone Thermal Gap Pad 40 Psi For Telecommunication Hardware 0












Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
