Product Name: | Cache Chips Gray 2.5 W/MK Heat Sink Cooling Phase Changing Materials | Color: | Gray |
---|---|---|---|
Thermal Conductivity: | 2.5 W/mK | Phase Change Softening Temperature: | 50℃~60℃ |
Density: | 2.5g/cc | Recommend Operating Temperature: | -40℃~125℃ |
Keywords: | Phase Changing Materials | Application: | Heat Sink,Cache Chips |
Highlight: | thermal insulating materials,heat sensitive materials,Phase Changing Materials 2.5 W/MK |

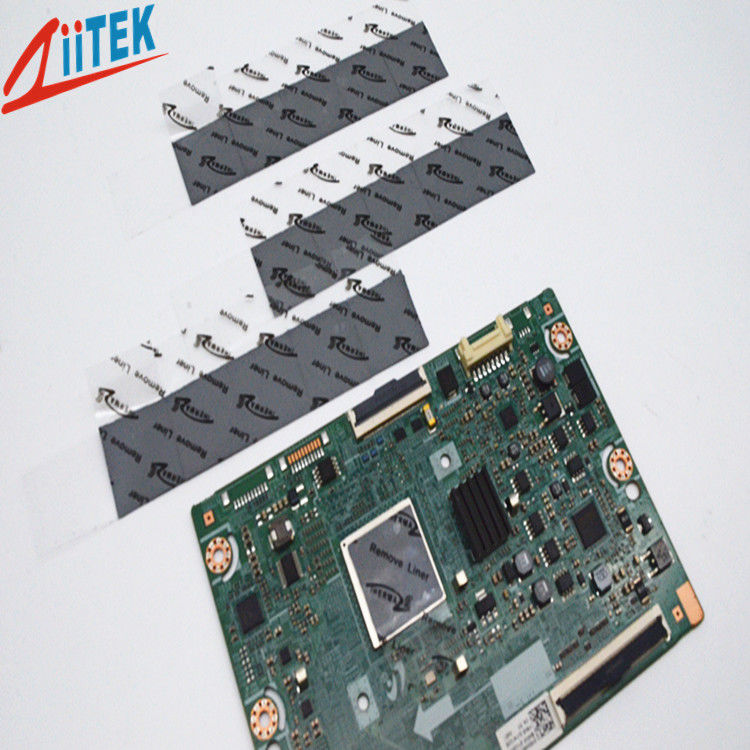

Cache Chips Gray 2.5 W/MK Heat Sink Cooling Phase Changing Materials
The TIC®800A series is a high-performance,cost-effective thermal interface material featuring a unique grain-oriented structure that enables precise conformity to device surfaces, thereby enhancing the thermal conduction path and transfer efficiency. When the temperature exceeds its phase transition point of 50°C, the material softens and undergoes phase change,effectively filling microscopic and uneven gaps between components to form a low thermal resistance interface, significantly improving heat dissipation performance.
Features
> Low thermal resistance
> Self-adhesive with no need for additional surface adhesives
> Low-pressure application environment
Applications
> Power conversion equipment
> Power supply and vehicle storage battery
> Large communication switch hardware
> LED TV,Lighting
> Laptop computer
Typical Properties of TIC®800A Series | ||||||
Product Name | TIC®805A | TIC®806A | TIC®808A | TIC®810A | TIC®820A | Testing standards |
Color | Gray | Visual | ||||
Composite Thickness | 0.005" | 0.006" | 0.008" | 0.010" | 0.020" | ASTM D374 |
(0.127mm) | (0.152mm) | (0.203mm) | (0.254mm) | (0.508mm) | ||
Density | 2.5g/cc | ASTM D792 | ||||
Work temperature | -40℃~125℃ | Ziitek Test Method | ||||
phase transition temperature | 50℃~60℃ | Ziitek Test Method | ||||
Thermal conductivity | 2.5 W/mK | ASTM D5470 | ||||
Thermal lmpedance (℃-in²/W)@50 psi |
0.055 | 0.06 | 0.062 | 0.074 | 0.095 | ASTM D5470 |
Standard Thicknesses:
0.005"(0.127 mm),0.006"(0.152 mm),0.008"(0.203 mm),0.010" (0.254 mm),0.020"(0.508 mm)
For other thickness options, please contact us.
Standard size: 10”x 16"(254 mm x 406 mm),16”x 400'(406 mm x 122 m).
TIC®800A series is supplied with a white release liner and backing pad.
Die-cutting with half-cut processing can include pull tabs.custom-shaped samples are also available.
Pressure-Sensitive Adhesive: Not applicable to TIC®800A series products.Reinforcement Materal: No reinforcement materialrequired.
