Low Thermal Resistance LED Floot Light 6.0W/MK Black Graphite Sheet Thermal Conductivity

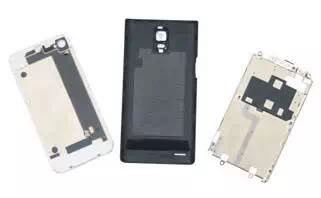

Large Image : Low Thermal Resistance LED Floot Light 6.0W/MK Black Graphite Sheet Thermal Conductivity

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR606

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

Product Name:	Low Thermal Resistance LED Floot Light 6.0W/MK Black Graphite Sheet Thermal Conductivity	Materials:	Natural Graphite
Color:	Black	Hardness:	2.2 G/cc
Thermal Conductivity (Z Axis Direction):	6.0W/m-K	Thermal Conductivity (X-Y Axis Direction):	240W/m-K
Operating Temperature:	-200℃ ～300℃	Keywords:	Black Graphite Sheet
Highlight:	pyrolytic graphite sheet , thin graphite sheet , 10 W / MK Black Graphite Sheet

Low Thermal Resistance LED Floot Light 6.0W/MK Black Graphite Sheet Thermal Conductivity

The TIR606 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

Feature

Easy to assemble

Ultra-thin type

RoHS Compliant

Thermal Conductivity: 6.0W/mK

Reduce hot spots and protect sensitive areas

Light weight

Flexible

Ease of manufacturing for high volume production

Applications

PDP,LCD TV

Laptop,Notebook,Projector

Mobile phone

Automotive electronics

displays, lighting, telecom

Hand‐held devices

Set top box

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

Low Thermal Resistance LED Floot Light 6.0W/MK Black Graphite Sheet Thermal Conductivity 0

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sizes

500m x 50m
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive

Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.

Low Thermal Resistance LED Floot Light 6.0W/MK Black Graphite Sheet Thermal Conductivity 1
