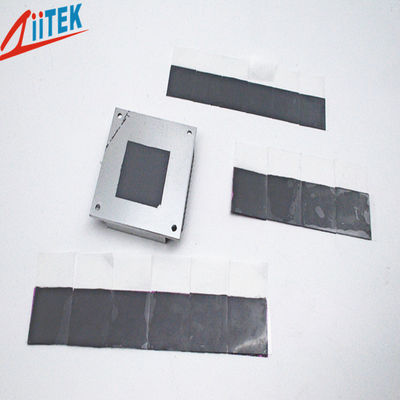

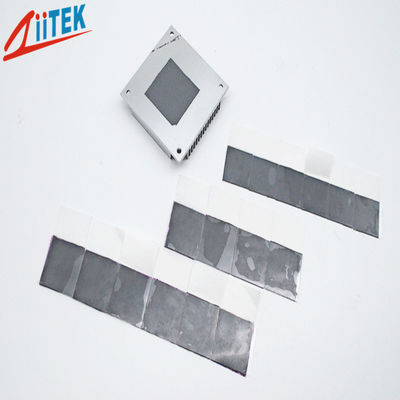

Low-Melting CPU Gray 2.5W Phase Changing Materials PCM For Power Conversion Equipment

Low-Melting CPU Gray 2.5W Phase Changing Materials PCM For Power Conversion Equipment

Large Image :  Low-Melting CPU Gray 2.5W Phase Changing Materials PCM For Power Conversion Equipment

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIC805A
Payment & Shipping Terms:
Minimum Order Quantity: 1000PC
Price: USD 0.03PCS
Packaging Details: 1000PCS/bag
Delivery Time: 2-3Works
Supply Ability: 100000PCS/DAY
Detailed Product Description
Product Name: Low-Melting CPU Gray 2.5W Phase Changing Materials PCM For Power Conversion Equipment Color: Gray
Thermal Conductivity: 2.5 W/mK Phase Change Softening Temperature: 50℃~60℃
Recommend Operating Temperature: -40℃~125℃ Density: 2.5 G/cc
Keywords: Phase Changing Materials Application: Power Conversion Equipment
Highlight:

thermal insulating materials

,

heat sensitive materials

,

2.5w Phase Changing materials

Low-Melting CPU Gray 2.5W Phase Changing Materials PCM For Power Conversion Equipment



The TIC®800A series is a high-performance,cost-effective thermal interface material featuring a unique grain-oriented structure that enables precise conformity to device surfaces, thereby enhancing the thermal conduction path and transfer efficiency. When the temperature exceeds its phase transition point of 50°C, the material softens and undergoes phase change,effectively filling microscopic and uneven gaps between components to form a low thermal resistance interface, significantly improving heat dissipation performance.



Features
> Low thermal resistance
> Self-adhesive with no need for additional surface adhesives
> Low-pressure application environment


Applications
> Power conversion equipment

> Power supply and vehicle storage battery
> Large communication switch hardware

> LED TV,Lighting
> Laptop computer



Typical Properties of TIC®800A Series
Product Name TIC®805A TIC®806A TIC®808A TIC®810A TIC®820A Testing standards
Color Gray Visual
Composite Thickness 0.005" 0.006" 0.008" 0.010" 0.020" ASTM D374
(0.127mm) (0.152mm) (0.203mm) (0.254mm) (0.508mm)
Density 2.5g/cc ASTM D792
Work temperature -40℃~125℃ Ziitek Test Method
phase transition temperature 50℃~60℃ Ziitek Test Method
Thermal conductivity 2.5 W/mK ASTM D5470
Thermal lmpedance(℃-in²/W) @ 50 psi 0.055 0.06 0.062 0.074 0.095 ASTM D5470



Standard Thicknesses:

0.005"(0.127 mm),0.006"(0.152 mm),0.008"(0.203 mm),0.010" (0.254 mm),0.020"(0.508 mm)

For other thickness options, please contact us.


Standard size: 10”x 16"(254 mm x 406 mm),16”x 400'(406 mm x 122 m).
TIC®800A series is supplied with a white release liner and backing pad.

Die-cutting with half-cut processing can include pull tabs.custom-shaped samples are also available.
Pressure-Sensitive Adhesive: Not applicable to TIC®800A series products.Reinforcement Materal: No reinforcement materialrequired.
