Product Details:
Payment & Shipping Terms:
|
| Product Name: | TIG780-25 | Color: | Gray |
|---|---|---|---|
| Construction & Compostion: | Metal Oxide Filled Silicone Oil | Specific Gravity: | 2.5 G/cm3 |
| Thermal Conductivity: | 2.5 W/mK | Evaporation: | 0.15% / 200℃@24hrs |
| High Light: | cpu thermal paste,heat sink grease,2.5 W/mK Thermally Conductive Grease |
||
China Factory 2.5W Thermally Conductive Grease

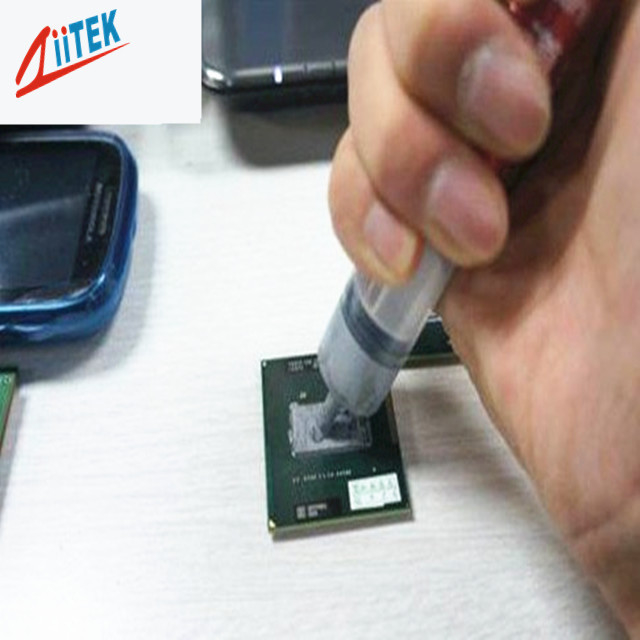

The TIG™780-25 products are the high-efficiency heat dissipation ones for the fillings between the electronic components and the heat dissipation fins. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is far superior to that offered by others.
TIG780-25 Series Datasheet-(E)-REV01.pdf
Features
| Low thermal resistance |
| One component paste like interface material, never dry |
| Thermal compound formulated to maximize the heat transfer |
| Outstanding electrical insulation properties and will not harden on long exposure to elevated temperatures |
| Non-toxic and environmentally safe |
| Silicone-based materials conduct heat between a hot component and a heat sink or enclosure |
| Fills interface variable tolerances in electronics assemblies and heat sink applications |
| Dispensable, highly conformable materials require no cure cycle, mixing or refrigeration |
| Thermally stable and require virtually no compressive force to deform under typical assembly pressures |
| Supports high power applications requiring material with minimum bond line thickness and high conductivity |
| Ideal for rework and field repair situations |
Applications lnclude
| Semiconductor cases and heat sinks |
| Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices |

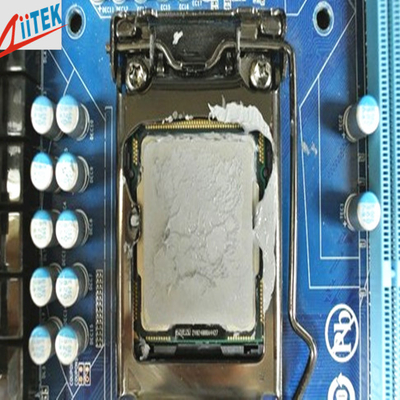

| CPUs and GPUs |
| Automatic dispensing and screen-printing |
| Mobile, desktop |
| Engine and transmission control modules |
| Memory modules |
| Power conversion equipment |
| Power supplies and UPS |
| Power semiconductors |
| Integrated Gate Bipolar Transistors (IGBT) |
| Between any heat generating semiconductor and heat sink |
| Custom power modules |
| Telecommunications and automotive electronics |
| LED Power Supply |
| LED Controller |
| LED Lights |
| LED Ceilinglamp |
| Monitoring the Power Box |
| AD-DC Power Adapters |
| Rainproof LED Power Supply |
| Waterproof LED Power Supply |
| Piranha wroof and common lED module |
| LED module for Channelletters |
|
Typical Properties of TIG™780-25 Series
|
||
| ProductName | TIG™780-25 | Test Method |
| Color | Gray | Visual |
| Construction & Compostion |
Metal oxide filled silicone oil | ***** |
| Viscosity | 2200K cps @.25℃ | Brookfield RVF,#7 |
| Specific Gravity | 2.46 g/cm3 | ASTM 2240 |
| Continuous Use Temp |
-45℃ to 200℃ |
***** |
| Evaporation |
0.15% / 200℃@24hrs |
ASTM E595 |
| Thermal Conductivity | 2.5 W/mK | ASTM D5470 |
| Thermal lmpedance | 0.02℃-in²/W @ 50 psi(344 KPa) | ASTM D5470 |
Package:
TIG™780 Series is available in 1kg(pint container),
3kg(quart container),
10kg(gallon container)
or custom packaged in syringes for automated applications.
Storage:
Store from 20°C to 35°C with a maximum humidity of
50%.Do not store in freezer orrefrigerator below 10°C.
