Gray CPU Silicone Thermal Grease Paste with Thermal Conductivity of 5.2 W/mK

Large Image : Gray CPU Silicone Thermal Grease Paste with Thermal Conductivity of 5.2 W/mK

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIG780-52

Payment & Shipping Terms:

Minimum Order Quantity:	1KG
Packaging Details:	1KG/CAN
Delivery Time:	3-5 work days
Supply Ability:	100KG/Days

Contact Now

Detailed Product Description

Product Name:	Gray CPU Silicone Thermal Grease Paste	Color:	Gray
Viscosity(mPa.s):	200000	Specific Gravity:	2.30 G/cm3
Thermal Conductivity:	5.2 W/mK	Keywords:	Thermal Grease Paste
Highlight:	Gray CPU Silicone Thermal Grease Paste , CPU Silicone Thermal Grease Paste

Gray CPU Silicone Thermal Grease Paste

TIG™780-52 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.

TIG™780-52 is a heat conducting product in the shape of paste.They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance .Consequently, the heat dissipation efficiency is far superior to that offered by others.

Features

> Low thermal impedance.

> Non-toxic and environmentally safe.

> Excellent long term stability.
> Thoughly wets out contact surface to create, low thermal resistance.

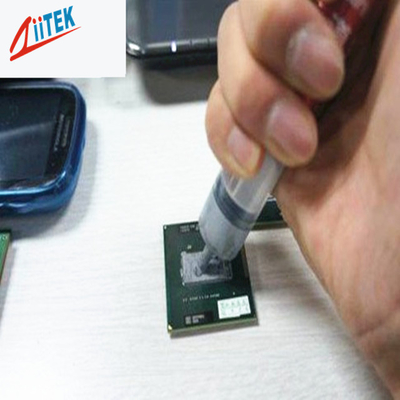

Gray CPU Silicone Thermal Grease Paste with Thermal Conductivity of 5.2 W/mK 0

Applications

CPU, LED, Chipsets

Display card

Mainboard/mother board

Notebook

Power supply

Heat pipe thermal solutions

Memory Modules

Mass storage devices

Automotive electronics

Set top boxes

TDS:

Typical Properties of TIG™780-52 Series
Product Name	TIG™780-52	Test Method
Color	Gray	Visual
Construction	Metal oxide filled silicone oil	Ziitek Test Method
Specific Gravity	2.3 g/cm3	ASTM 297
Thermal Conductivity	5.2W/mK	ASTM D5470
Bond line Thickness(mm)	0.008	ASTM D374
Themal Impedance(℃-in²/W )@ 30 psi	0.015	ASTM D5470
Themal Impedance(℃-in²/W )@ 50 psi	0.012	ASTM D5470
Recommended operating Temp(℃)	-45℃ to 200℃	Ziitek Test Method
Fire rating	V-0	UL 94
Viscosity (mPa.s)	200000	GB/T 10247

Package:

5g ~ 50g for the needle cylinder, Cans of 300ml, 600ml , 1200ml

Storage:
Store from 5° C to 25°C with a maximum humidity of 70%. Do not store in freezer or refrigerator below 0°C. Safe disposal method does not require special protection.The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

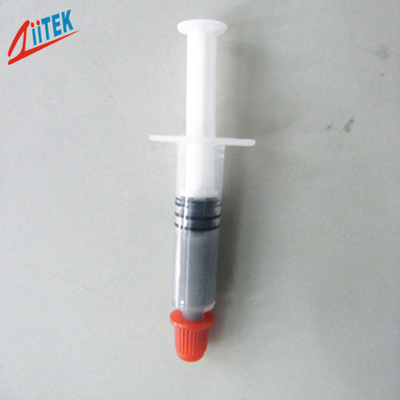

Gray CPU Silicone Thermal Grease Paste with Thermal Conductivity of 5.2 W/mK 1
