High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness

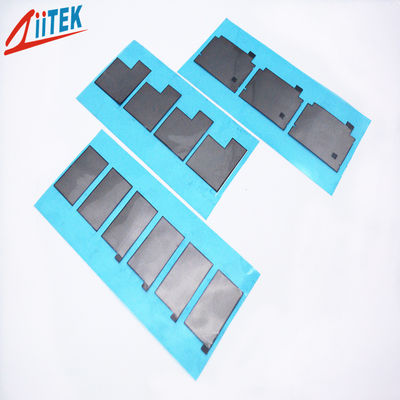

Large Image : High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR™610

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

Product Name:	High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness	Hardness:	2.2 G/cc
Materials:	Natural Graphite	Thermal Conductivity (In Z Axis ):	6.0W/m-K
Thermal Conductivity (In X-Y Axis ):	240W/m-K	Operating Temperature:	-200℃ ～300℃
Color:	Black	Keywords:	Thermal Graphite Sheet
Highlight:	pyrolytic graphite sheet , thin graphite sheet , High performance Thermal Graphite Sheet

High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness

The TIR™610 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

Features

Easy to assemble

Ultra-thin type

RoHS Compliant

Thermal Conductivity:240W/mK

Reduce hot spots and protect sensitive areas

Light weight

Flexible

Ease of manufacturing for high volume production

Applications

PDP,LCD TV

Laptop,Notebook,Projector

Mobile phone

Automotive electronics

displays, lighting, telecom

Hand‐held devices

Set top box

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

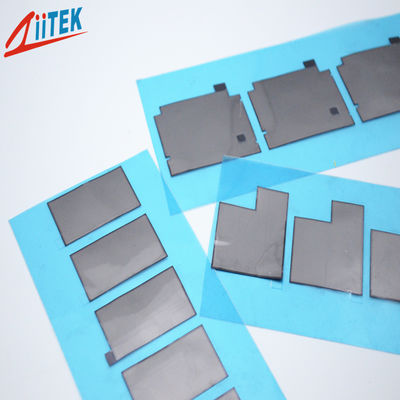

High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness 1

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
