Low Thermal Resistance High Heat Graphite Materials 6W/MK Ultra-Thin Graphite Sheet

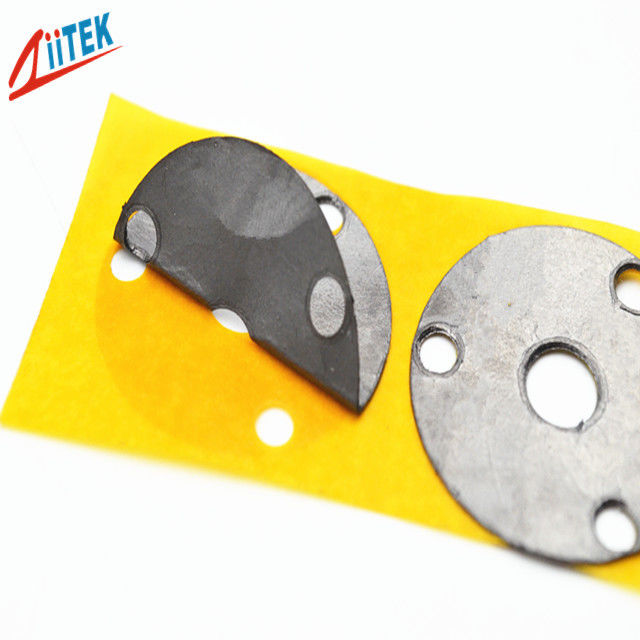

Large Image : Low Thermal Resistance High Heat Graphite Materials 6W/MK Ultra-Thin Graphite Sheet

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR620

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

Products Name:	Low Thermal Resistance High Heat Graphite Materials 6W/MK Ultra-Thin Graphite Sheet	Materials:	Natural Graphite
Color:	Black	Hardness:	2.2 G/cc
Thermal Conductivity (in Z Axis ):	6.0W/m-K	Thermal Conductivity (X-Y Axis ):	240W/m-K
Operating Temperature:	-200℃ ～300℃	Keywords:	Ultra-Thin Graphite Sheet
Highlight:	thermal conductivity graphite , thin graphite sheet , High Heat graphite Materials 10 W / mK

Low Thermal Resistance High Heat Graphite Materials 6W/MK Ultra-Thin Graphite Sheet

The TIR™620 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

Features

Easy to assemble

Ultra-thin type

RoHS Compliant

Thermal Conductivity: 240W/mK

Reduce hot spots and protect sensitive areas

Light weight

Flexible

Ease of manufacturing for high volume production

Applications

Power conversion equipment

Power semiconductors:To packages, MOSFETs & IGBTs

Audio and Video components

Automotive control units

Motor controllers

General high pressure interface

Power supplies and UPS

Motor and engine controllers

Televisions and consumer electronics

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common LED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

Low Thermal Resistance High Heat Graphite Materials 6W/MK Ultra-Thin Graphite Sheet 0

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes : 500mm x 50m
TIR^TM600 series Individuall die cut shapes can be supplied.

Consult the factory alternate thickness.

Low Thermal Resistance High Heat Graphite Materials 6W/MK Ultra-Thin Graphite Sheet 1
