LED Heat Sinking Housing Thermal Conductive Pad 4.7 W/MK For Uneven Surfaces Low Stress Applications

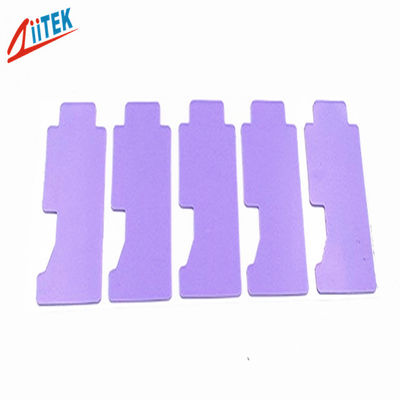

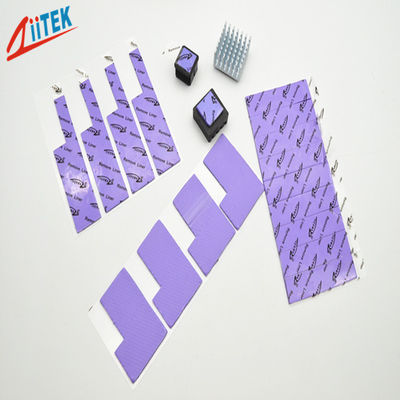

Large Image : LED Heat Sinking Housing Thermal Conductive Pad 4.7 W/MK For Uneven Surfaces Low Stress Applications

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF600 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Products Name:	LED Heat Sinking Housing Thermal Conductive Pad 4.7 W/MK For Uneven Surfaces Low Stress Applications	Color:	Blue/Vialet
Thermal Conductivity:	4.7 W/m-K	Hardness:	45 Shore 00
Specific Gravity:	2.95 /cc	Continuos Use Temp:	-40 To 200℃
Dielectric Breakdown Voltage:	>8000VAC	Keywords:	Thermal Conductive Pad
Application:	Uneven Surfaces Low Stress Applications
Highlight:	thermally conductive pad , thermal conductive material , Thermal Conductive Pad 4.7 W / mK

LED Heat Sinking Housing Thermal Conductive Pad 4.7 W/MK For Uneven Surfaces Low Stress Applications

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Products description

The TIF^®600 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features

> Good thermal conductive

> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications

> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply

> Motherboard chip
> Radiator
> AI Processors AI Servers

Typical Properties of TIF^®600 Series
Color	Blue/Violet	Visual
Construction & Compostion	Ceramic filled silicone rubber	******
Specific Gravity	2.95 g/cc	ASTM D297
Thickness range	0.020"(0.50mm)~0.200"(5.0mm)	ASTM C351
Hardness	45 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃	******
Dielectric Breakdown Voltage	>8000 VAC	ASTM D149
Dielectric Constant @ 1MHz	6.0 MHz	ASTM D150
Volume Resistivity	5.0X10¹³Ohm-meter	ASTM D257
Fire rating	94-V0	UL E331100
Thermal conductivity	4.7 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied.

Please contact us for confirming

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
