Product Details:
Payment & Shipping Terms:
|
Color: | Gray | Thermal Conductivity: | 5.0W/m-K |
---|---|---|---|
Hardness: | 60 Shore 00 | Specific Gravity: | 2.75 G/cc |
Continuos Use Temp: | -50 To 200℃ | Dielectric Breakdown Voltage: | >10000 VAC |
Highlight: | thermally conductive pad,cpu thermal pad,Thermally Conductive Pad Gray |

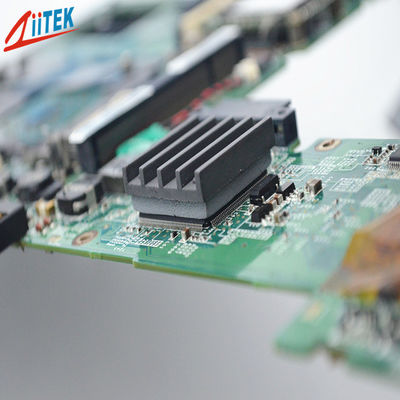

Gray LED High Temperature Thermally Conductive Pad Heat Dissipation 5W / mK for RDRAM memory modules 60 Shore 00
Typical Properties of TIF™100-50-10F Series
|
||||
Color
|
Gray |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm | 0.36 |
20mils / 0.508 mm | 0.41 | |||
Specific Gravity
|
2.75 g/cc | ASTM D297 |
30mils / 0.762 mm |
0.47 |
40mils / 1.016 mm |
0.52 | |||
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.58 |
60mils / 1.524 mm |
0.65 |
|||
Hardness
|
60 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.72 |
80mils / 2.032 mm |
0.79 | |||
Tensile Strength
|
45 psi |
ASTM D412 |
90mils / 2.286 mm |
0.87 |
100mils / 2.540 mm |
0.94 | |||
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.01 |
120mils / 3.048 mm |
1.09 | |||
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.17 |
140mils / 3.556 mm |
1.24 | |||
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.34 |
160mils / 4.064 mm |
1.42 | |||
Volume Resistivity
|
7.8X10" Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.50 |
180mils / 4.572 mm |
1.60 | |||
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.68 |
200mils / 5.080 mm |
1.77 | |||
Thermal conductivity
|
5.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
