Product Details:
Payment & Shipping Terms:
|
| Product Name: | CPU GPU Heat Conductive Silicone Grease With Low Thermal Resistance | Color: | White |
|---|---|---|---|
| Viscosity: | 1000K Cps @.25℃ | Specific Gravity: | 2.2 G/cm3 |
| Thermal Conductivity: | 1.5 W/mK | Keywords: | Heat Conductive Silicone Grease |
| Highlight: | thermally conductive grease,cpu thermal paste,cpu thermal paste thermal conductivity |
||

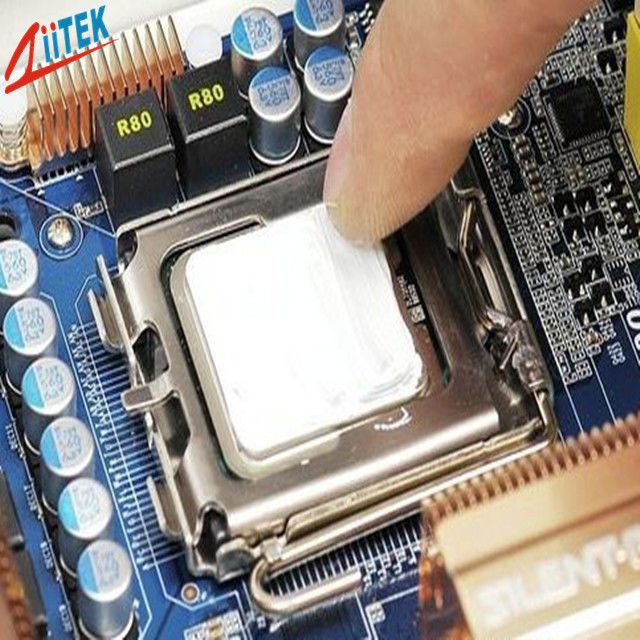

CPU GPU Heat Conductive Silicone Grease with Low Thermal Resistance
The TIG™780-15 products are the high-efficiency heat dissipation ones for the fillings between the electronic components and the heat dissipation fins. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is far superior to that offered by others.
Features
> Good thermal conductivity
> Non-toxic and environmentally safe
> Excellent long term stability
> Thoroughly wets out contactsurfaces to create low thermal resistance
Applications
> Semiconductor cases and heat sinks.
> Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices.
> CPU's and GPU's.
> Automatic dispensing and screen-printing.
|
Typical Properties of TIG™780-10Series
|
||
| ProductName | TIG™780-10 | Test Method |
| Color | White | Visual |
| Materials | Metal oxide filled silicone oil | Ziitek Test Method |
| Specific Gravity | 2.5g/cm³ | ASTM D297 |
| Thermal Conductivity(W/mK) | 1.5W/mK | ASTM D5470 |
| Bond line Thickness (mm) | 0.014 | ASTM D374 |
| Thermal lmpedance(℃-in²/W )@ 10 psi | 0.085 | ASTM D5470 |
| Thermal lmpedance(℃-in²/W )@ 50 psi | 0.065 | ASTM D5470 |
| Recommended operating temp (°C) | -45℃ to 200℃ | Ziitek Test Method |
| Viscosity(( mPa·s ) | 130,000 | GB/T 10247 |
Package:
Cans of 300ml ~1000ml,; 500g ~ 2kgStorage:
Storage:
Store from 25°C with a maximum humidity of 70%. Do not store in freezer or refrigerator below 0° C. Safe disposal method does not require special protection.The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
