Product Details:
Payment & Shipping Terms:
|
| Product Name: | Thermal Conductivity Silicone Grease For Computer Desktop Laptop Notebook CPU GPU | Keywords: | Silicone Thermal Grease |
|---|---|---|---|
| Color: | White | Viscosity: | 1000K (Pa.s @.25℃) |
| Specific Gravity: | 2.13 G/cm3 | Thermal Conductivity: | 1.0 W/mK |
| Evaporation(TML)(200℃@24hrs): | 0.23% | Recommended Operating Temp(℃）: | -45~200℃ |
| Highlight: | thermally conductive grease,heat sink grease,White thermally conductive silicone grease |
||

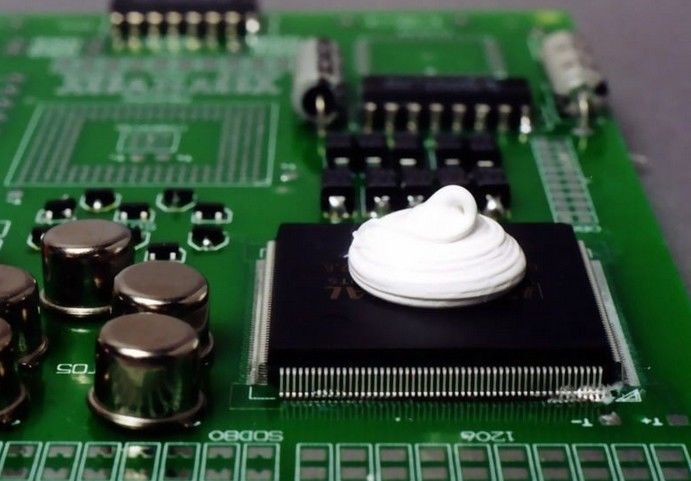

Thermal Conductivity Silicone Grease For Computer Desktop Laptop Notebook CPU GPU
The TIG™780-10 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issue.
TIG™780-10 is presenting thermal paste products. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance.Consequently, the heat dissipation efficiency is farsuperior to that offered by others.
TIG780-10 Series Datasheet-(E)-REV01.pdf
Features
> Low thermal resistance of 0.15 ℃-in² /W
> Non-toxic and environmentally safe
> Outstanding electrical insulation properties
> Thoroughly wets out contact surfaces to create low thermal resistance
Applications
> Semiconductor cases and heat sinks.
> Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices.

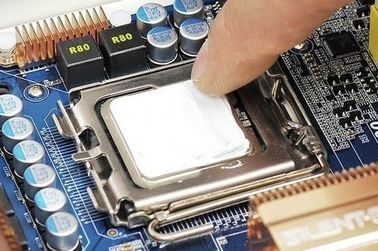

> CPU's and GPU's.
> Automatic dispensing and screen-printing.
|
Typical Properties of TIG™780-10 Series
|
||
|
Product Name
|
TIGTM780-10
|
Tese Method
|
|
Color
|
White paste
|
Visual
|
|
Construction & Compostion
|
Metal oxide filled silicone oil
|
Ziitek Test Method
|
|
Viscosity
|
1000K (Pa.s @.25℃)
|
Brookfield DV2T
|
| Bond line Thickness | 0.012 | ASTM D374 |
|
Specific Gravity (g/cm3)
|
2.13
|
ASTM 2240
|
|
Continuos Use Temp
|
-45℃ to 200℃
|
Ziitek Test Method
|
|
Evaporation (TML)(200℃@24hrs)
|
0.23%
|
ASTM E595
|
|
Thermal Conductivity
|
1.0 W/mK
|
ASTM D5470
|
|
Thermal Impedance(℃-in²/W )@ 50 psi
|
0.15
|
ASTM D5469
|
Package
TIGTM780-10 Series is available in 1kg (pint container),3kg (quart container), and 10kg(gallon container) or custom packaged in syringes for automated applications.
Storage:
Store from 20C to 35°C with a maximum humidity of 50%. Do not store in freezer orrefrigerator below 10°℃.
