Product Details:
Payment & Shipping Terms:
|
| Color: | Gray | Thermal Conductivity: | 3.0W/m-K |
|---|---|---|---|
| Hardness: | 27±5 Shore 00 | Specific Gravity: | 3.05 G/cc |
| Continuos Use Temp: | -40 To 160℃ | Key Words: | Silicone Thermal Pad |
| High Light: | thermal conductive material,cpu thermal pad,2.8W/mK Thermal Conductive Sheet |
||

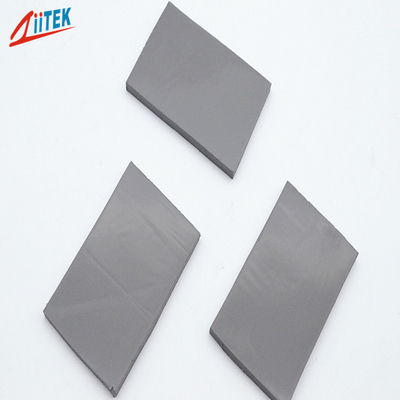

Gray Silicone Thermal Pad Ultra Soft Thermal Conductive Sheet for Electronic Computer
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

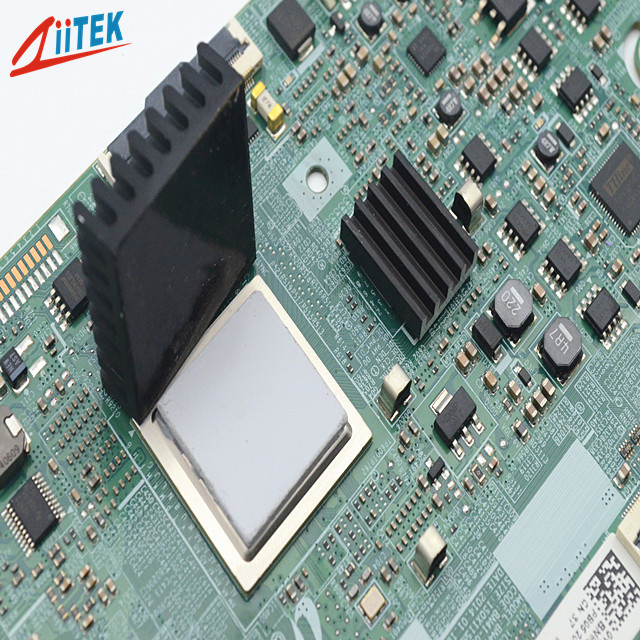

The TIF™300 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which in effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive: 3.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| Typical Properties of TIF™300 Series | ||
| Color | Gray | Visual |
| Construction &Compostion | Ceramic filled silicone | *** |
| Thinkness range | 0.020"(0.50mm~0.200"(5.0mm) | ASTM D374 |
| Hardness | 27±5 Shore 00 | ASTM 2240 |
| Specific Gravity | 3.05 g/cc | ASTM D297 |
| Continuos Use Temp | -40-160℃ | *** |
| Dielectric BreakdownVoltage @ 1.0mm,AC(v) | ≥5500 | ASTM D149 |
| Dielectric Constant @MHz | 4.5 | |
| Volume Resistivity(Ohm-cm) | ≥1.0X10 12" Ohm-meter |
ASTM C351 |
| Thermal conductivity | 3.0 W/m-K | ASTM D412 |
| Fire rating | V-0 | ASTM E595 |
Product Thicknesses:
0.020-inch to 0.200-inch(0.5mm to 5.0mm)
Product Sizes:
8"x 16%(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.
Please contact us for confirming.
