Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications

Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications
Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications
Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications

Large Image :  Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: Z-Foam800-10SEC
Document: Z-FOAM800-10SEC _Data Sheet...et.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 0.1-10 USD/PCS
Packaging Details: 1000PCS/bag
Delivery Time: 3-7 Work Days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Contact Now

Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications

Description
Products Name: Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications Color: Gray
Tensile Strength (MPa): ≥0.2 Construction: Silicone Rubber
Keywords: Silicone Foam Gasket Density(g/cm³）: 0.3
Compression Set (%)@100℃: ＜5.0 Application: Cushioning And Noise Reduction Applications
Highlight:

durable silicone foam gasket

,

high compression silicone gasket

,

noise reduction foam gasket

Durable Silicone Foam Gasket With High Compression And Creep Resistance Ideal For Cushioning And Noise Reduction Applications
Product Overview

Z-Foam ®800-10SEC Series combines the inherent advantages of silicone polymer, including high/low temperature resistance, UV/ozone resistance, weatherability, electrical insulation, and environmental safety. With the lightweight, acoustic damping, and vibration-damping properties of foam. With excellent compression set resistance, creep resistance, flame retardancy, and mechanical fatigue endurance, it is an ideal solution for cushioning, insulation, protection, fire safety, and noise reduction applications.

Key Features
  • Resistant to mechanical fatigue
  • Resistant to ozone and ultraviolet rays
  • Good insulation properties
  • Excellent flame retardancy
  • Excellent resistance to compression set and creep
Applications
  • Communication Equipment
  • Smart Devices
  • Cables and Optical Fibers
  • Airplanes, High-Speed Trains, Automobiles
  • Telecommunication and Electrical Cabinets
Typical Properties of Z-Foam ®800-10SEC Series
Properties Value Test Method
Color Gray Visual
Structure & Component Silicone rubber ZKTM J024
Thickness Range (inch/mm) 0.059~0.512 / 1.5~13.0 ASTM D374
Density (g/cm³) 0.3 ASTM D1056
Compressive Stress (kPa) @25% 35±10 ASTM D1056
Compression Set (%) @100℃ <5.0 ASTM D1056
Tensile Strength (MPa) ≥0.2 ASTM D412
Elongation At Break (%) ≥80 ASTM D412
Water Absorption (%) ≤5.0 ASTM D570
Volume Resistivity (Ω*cm) ≥1.0 × 10¹⁴ ASTM D257
Flame Rating V-0 UL94 (E331100)
Z-Foam product technical specifications and properties
Product Specifications

Standard Thickness: 0.059" (1.5 mm) ~ 0.512" (13.0 mm)

  • 1.5 mm ≤ T ≤ 2.0 mm, Increments of 0.5 mm
  • 2.0 mm < T ≤ 5.0 mm, Increments of 1.0 mm
  • 5.0 mm < T ≤ 9.5 mm, In increments of 1.5 mm
  • 9.5 mm < T ≤ 12.0 mm, In increments of 2.5 mm

Standard Size: See size chart for details

Z-FOAM series can be molded into different shapes and provided. If you need different thicknesses, please contact our company.

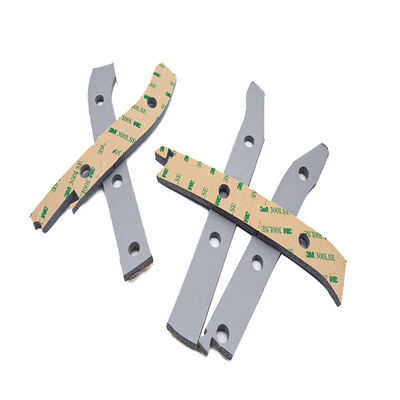

Z-Foam product application examples and manufacturing process
Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

  • Thermal gap pad
  • Thermal graphite sheet/film
  • Thermal double-sided tape
  • Thermal insulation pad
  • Thermal grease
  • Phase change material
  • Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Our Services
  • Online-service: 12 hours, Inquiry reply within fastest
  • Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8)
  • Well-trained & experienced staff are to answer all your inquiries in English
  • Standard Export Carton Or Marked With Customer's Information Or Customized
  • Provide free samples
  • After-service: Even our products have passed strict inspection, if you find the parts cannot work well, please show us the proof. We will help you to deal with it and give you satisfactory solution.
