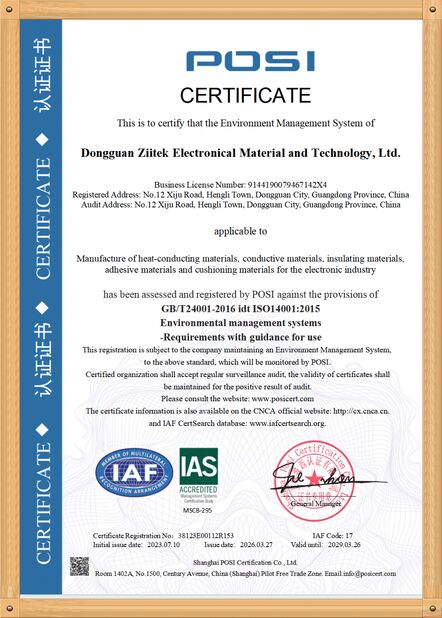

China Dongguan Ziitek Electronical Material and Technology Co., Ltd certification

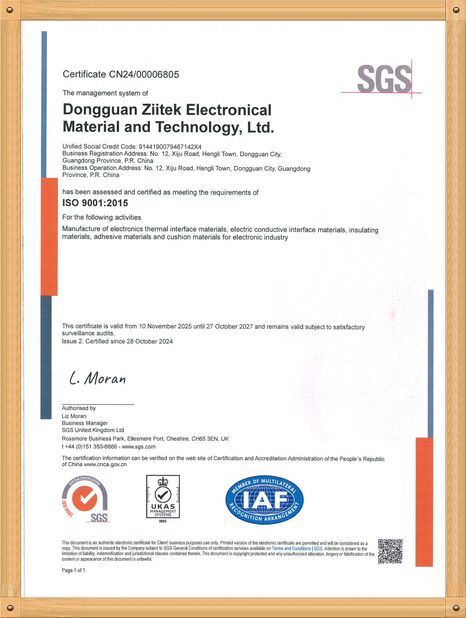

China Dongguan Ziitek Electronical Material and Technology Co., Ltd certification
Customer Reviews
The Thermal Conductive Pad is looking and working very good. We have no need for other Thermal Conductive Pad now!

—— Peter Goolsby

I had cooperated with Ziitek for 2 years, they provided high quality thermal conductive materials, and delivery in time, recommend their phase change materials

—— Antonello Sau

Good quality, Good service. Your team always give us help and resolving, hope we will be good partner all the time!

—— Chris Rogers

I'm Online Chat Now

Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems

Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems
Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems
Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems

Large Image :  Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: Z-Foam800-10EC
Document: Z-FOAM800-10EC_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 0.1-10 USD/PCS
Packaging Details: 1000PCS/bag
Delivery Time: 3-7 Work Days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Contact Now

Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems

Description
Products Name: Silicone Foam Gasket Designed For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems Color: Gray
Density(g/cm³）: 0.20 Application: For Easy Application Providing Sealing And Insulation In Electrical And Mechanical Systems
Compression Set (%)@100℃: ＜3.0 Construction: Silicone Rubber
Tensile Strength (MPa): ≥0.3 Keywords: Silicone Foam Gasket

Silicone Foam Gasket for Electrical and Mechanical Systems
Product Overview

Z-Foam®800-10EC Series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers while possessing the characteristics of foam materials. This combination makes it ideal for various high-performance applications requiring sealing, vibration damping, cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.

Key Features
  • Resistant to mechanical fatigue
  • Resistant to ozone and ultraviolet rays
  • Good insulation properties
  • Excellent flame retardant performance
  • Excellent resistance to compression set and creep
Applications
  • Communication Equipment
  • Smart Devices
  • Cables and Optical Fibers
  • Airplanes, High-Speed Trains, Automobiles
  • Telecommunication and Electrical Cabinets
Technical Specifications of Z-Foam®800-10EC
Properties Value Test Method
Color Gray Visual
Construction Silicone rubber ******
Density (g/cm³) 0.20 ASTM D1056
Compressive Stress (kPa) @25% 20±3 ASTM D1056
Compression Set (%) @100℃ <3.0 ASTM D1056
Tensile Strength (MPa) ≥0.3 ASTM D412
Elongation At Break (%) ≥90 ASTM D412
Water Absorption (%) ≤5.0 ASTM D570
Volume Resistivity (Ω*cm) ≥1.0 x 10¹⁵ ASTM D257
Recommended Operating Temperature (℃) -55~200 -
Flame Rating V-0 UL94 (E331100)
Standard Sheet Size: 20" x 49" (500mm x 15m)
Z-Foam® Series can be die-cut into different shapes.
For different thickness options, please contact us.

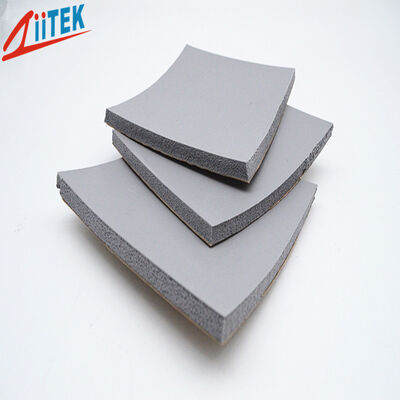

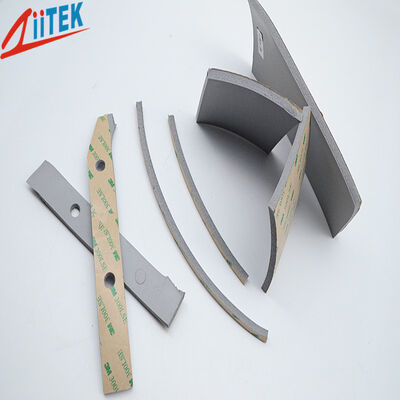

Z-Foam silicone foam gasket material sample showing gray foam texture
