Two Component Thermally Conductive Wave Absorbing Gel For Battery Management System In New Energy Vehicles
Company Profile
Dongguan Ziitek Electronic Material and Technology Co., Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.

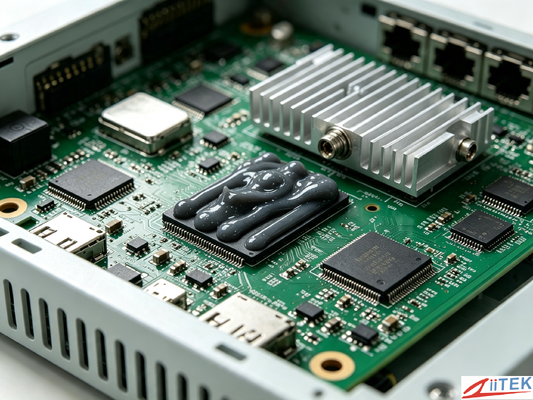

TIF®030AB-WA is a two-component thermally conductive and wave-absorbing gel designed for high-performance equipment. It delivers excellent EMl suppression while boasting superior thermal conductivity, making it ideal for applications requiringsimultaneous electromagnetic interference absorption and heat dissipation. Its gel form ensures exceptional application flexibility and gap adaptability, along with outstanding compressibility and conformability. The product is compatible withlarge-scale, automated dispensing processes, and is especially suitable for irregular surfaces and gap scenarios.
Features
>Integrated thermal conductivity and wave absorption dual functions
>Highly flexible silicone gel material
>High-viscosity stable system, no filler migration

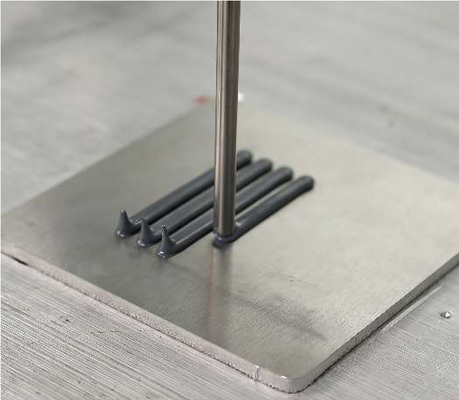

>Easy for automated operation of dispensing systems
>Long-term reliability
Applications
>RF modules for Routers/ Switches
>RF chips in smartphones,Tablets and Laptops
>Battery management system for new energy vehicles
>Power modules and Industrial control motherboards
>Lasers, Sensors and High-speed transmission interfaces
| Typical Properties of TIF®030AB-WA |
| Uncured Material Properties |
| Property |
Value |
Test Method |
| Construction |
Ceramic and magnetic powder-filled silicone materials |
- |
| Color/Part A |
Gray |
Visual |
| Color/Part B |
Gray |
Visual |
| Part A Viscosity (mPa·s) |
7,000,000 |
GB/T 10247 |
| Part B Viscosity (mPa·s) |
7,000,000 |
GB/T 10247 |
| Bond Line Thickness (mm) |
0.1 |
- |
| Mix Ratio |
1:1 |
- |
| Shelf Life(Month) |
12(Unopened) |
- |
| Cure Schedule |
| Pot Life @25℃ |
30 mins |
Ziitek Test Method |
| Cure @25℃ |
2-4 hours |
Ziitek Test Method |
| Cure @100℃ |
30 mins |
Ziitek Test Method |
| Cure Material Properties |
| Color |
Gray |
Visual |
| Hardness (Shore 00) |
60 |
ASTM D2240 |
| Density(g/cm³) |
4.0 |
ASTM D792 |
| Thermal Resistance @10psi (℃·in²/W) |
0.08 |
ASTM D5470 |
| Thermal Resistance @50psi (℃·in²/W) |
0.07 |
ASTM D5470 |
| Thermal Conductivity (W/Mk) |
3.0 |
ASTM D5470 |
| Recommended Operating Temperature (°C) |
-40~200℃ |
- |
| Flame Rating |
V-0 |
UL 94 |
Product Specification:
50cc/pcs, 400cc/pcs,or customized packaging for automation applications.
For information on products of different specifications, please contact our company.
If you want to learn more about our thermal conductivity products, please visit our official website.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
