Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays

Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays
Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays

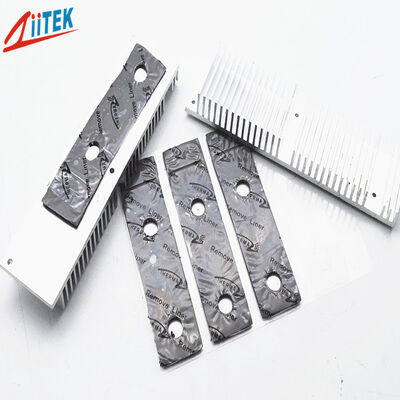

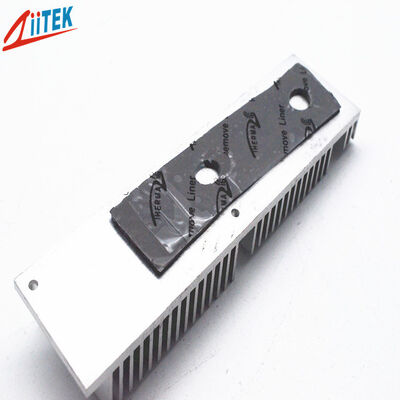

Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays

Large Image :  Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100 10020-11
Document: TIF100 10020-11_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Contact Now

Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays

Description
Application: Flat-panel Displays Keywords: Thermally Conductive Gap Filler Pads
Hardness: 20 Shore 00 Color: Dark Gray
Thermal Conductivity: 10.0W/m-K Products Name: Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays
Breakdown Voltage (V/mm): ≥5500 VAC Sample: Free
Recommended Operating |Temperature (%22C): -40 To 200℃ Specific Gravity: 3.3 G/cm³

Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays


Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material,  thermal grease etc. UL94 V-0, SGS and ROHS are compliant.


Products description

TIF®100 10020-11 Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies,such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features

>  Excellent thermal conductivity 10.0W/m·K
>  High compression rate

>  Extremely low thermal impedance

>  Excellent insulator


Applications

>  Between CPU and heat sink

>  Between a component and heat sink

>  Flat-panel displays

>  Power supplies

>  High speed mass storage drives

>  Telecommunication hardware

>  5G base station & infrastructure

>  High-end Chip


Typical Properties of TIF®100 10020-11  Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.3 ASTM D792
Thickness Range(inch/mm) 0.012~0.020 0.030~0.200 ASTM D374
0.30~0.50 0.75~5.00
Hardness (Shroe 00) 20 20 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant@ 1MHz

6.4

 ASTM D150
Volume Resistivity(Ohm-meter) ＞1.0X1012  ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 10.0 W/m-K ASTM D5470
10.0 W/m-K ISO22007

Product Specifications

Standard Thickness: 0.012" (0.30 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

The TIF® series is available in customshapes and various forms.
For other thicknesses or more information,please contact us.

Excellent Electrical Insulation High Thermal Conductivity 10W/mK Thermally Conductive Gap Filler Pads For Flat-panel Displays 0

Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.


FAQ:


Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.


Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.


Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
