High Temperature Resistance Insulation And Shock Resistance Silicone Foaming Material For Electric Vehicle

High Temperature Resistance Insulation And Shock Resistance Silicone Foaming Material For Electric Vehicle

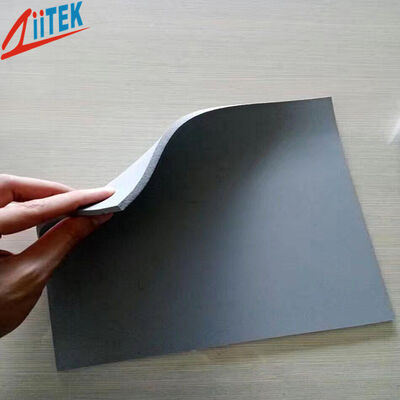

Large Image :  High Temperature Resistance Insulation And Shock Resistance Silicone Foaming Material For Electric Vehicle

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: Z-Foam800-10SC
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 0.1-10 USD/PCS
Packaging Details: 1000PCS/bag
Delivery Time: 2-7 Work Day
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detailed Product Description
Products Name: High Temperature Resistance Insulation And Shock Resistance Silicone Foaming Material For Electric Vehicle Color: Gray
Density(g/cm³): 0.37 Keywords: Silicone Foaming
Compression Set @100℃(%): <5.0 Structure & Components: Silicone Rubber
Tensile Strength(MPa): ≥0.3 Application: Electric Vehicle

High Temperature Resistance Insulation And Shock Resistance Silicone Foaming Material For Electric Vehicle


Z-Foam®800-10SC series foamed silicone is a foam material formed by the foaming of poly siloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weather ability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation.

Features


> Resistant to mechanical fatigue
> Resistant to ozone and ultraviolet rays
> High oxygen index, low smoke,low toxicity
> Excellent performance under extreme temperatures
> Excellent resistance to compression set and creep


Application


> Communication Equipment
> Smart Devices
> Cables and Optical Fibers
> Airplanes, High-Speed Trains,Automobiles
> Telecommunication and Electrical Cabinets



Typical Properties of Z-Foam®800-10SC Series
Properties Value Test method
Color Gray Visual
Structure & Component Silicone rubber ******
Density (g/cm3) 0.37 ASTM D1056
Compression Set @100℃(%)) <5.0 ASTM D1056
Tensile Strength (MPa) ≥0.3 ASTM D412
Elongation At Break (%) ≥90 ASTM D570
Water Absorption (%) ≤5.0 ASTM D412
Breakdown Voltage (kV/mm) ≥2.5 ASTM D149
Volume Resistivity (Ω·cm) ≥1.0 x 1014 ASTM D257
Temperature Range (℃)) -55~200 ******
Flame Rating V-0 UL94 (E331100)



Standard Sheet Size:23" x 60"(584mm x 1524mm)
Z-Foam® Series can be die-cut into different shapes provided.

For More different thickness,please contact us.
