1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

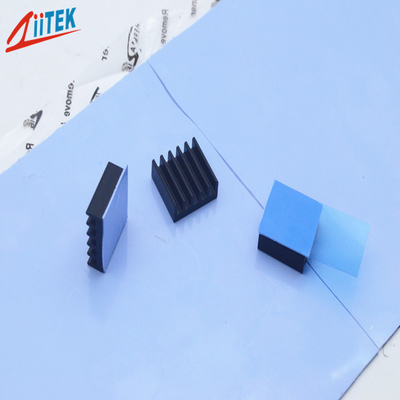

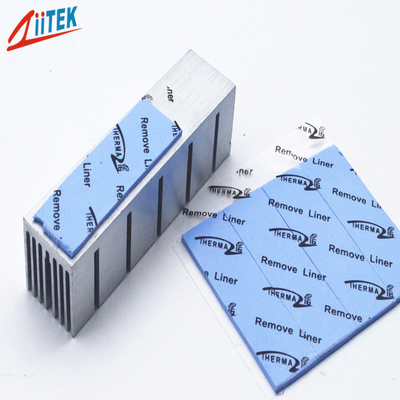

Large Image : 1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-12-05ES

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Products Name:	1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad	Keywords:	Thermal Pad
Thermal Conductivity:	1.2W/m-K	Thickness:	0.020"(0.5mm)~0.200"(5.0mm)
Hardness:	12±5 Shore 00	Color:	Blue
Sample:	Sample Free	Specific Gravity:	2.0g/cc
Application:	CPU Graphics Card Heat Dissipation

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad

The TIF^®100-12-05ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF^®100-12-05ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Easy release construction
> Electrically isolating
> High durability

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF^®100-12-05ES Series
Color	Blue	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.0 g/cc	ASTM D297
Hardness	12±5 Shore 00	ASTM 2240
Operating Temp	-40 ~ 160℃	******
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149
Dielectric Constant @1MHz	4.5 MHz	ASTM D150
Volume Resistivity	≥1.0X10¹²Ohm-cm	ASTM D257
Fire rating	94 V0	UL E331100
Outgassing(TML)	0.40%	ASTM E595
Thermal conductivity	1.2W/m-K	ASTM D5470

1.2W/Mk Thermal Pad Multi Size Silicone Pad High-Temperature CPU Graphics Card Heat Dissipation Insulation Pad 0
