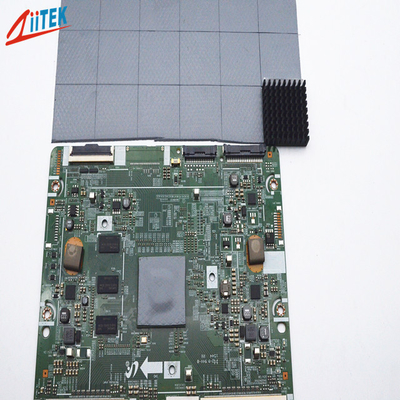

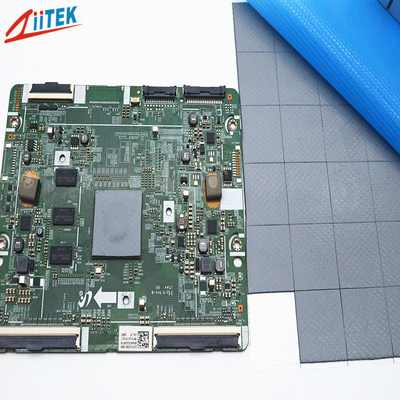

5.0W High Quality Factory Wholesale Customized Thermal Pad Thermal Gap Filler Insulation Sheet Silicone Pad For LED CPU GPU MOS

Large Image : 5.0W High Quality Factory Wholesale Customized Thermal Pad Thermal Gap Filler Insulation Sheet Silicone Pad For LED CPU GPU MOS

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF800US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Product Name:	5.0W High Quality Factory Wholesale Customized Thermal Pad Thermal Gap Filler Insulation Sheet Silicone Pad For LED CPU GPU MOS	Keywords:	Thermal Gap Filler Pad
Thermal Conductivity:	5.0 W/m-K	Construction & Compostion:	Ceramic Filled Silicone Elastomer
Sample:	Free	Density:	3.4 G/cm³
Hardness:	20 Shore 00	Thickness:	Available In Varies Thicknes
Application:	LED CPU GPU MOS

5.0W High Quality Factory Wholesale Customized Thermal Pad Thermal Gap Filler Insulation Sheet Silicone Pad For LED CPU GPU MOS

Products description

The TIF^®800US thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 5.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook

Typical Properties of TIF^®800US Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Specific Gravity	3.4g/cc	ASTM D297
Thickness range	0.020"(0.500)~0.200"(5.0mm)	ASTM D374
Hardness	20 Shore 00	ASTM 2240
Operating temp	-40 to 200℃	******
Dielectric Breakdown Voltage	≥5000 VAC	ASTM D149
Dielectric Constant @1MHz	4.5	ASTM D150
Volume Resistivity	≥ 1.0X10¹² Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Outgassing (TML)	0.55%	ASTM E595
Thermal conductivity	5.0 W/m-K	ASTM D5470
Thermal conductivity	5.0 W/m-K	ISO 22007-2

Products specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch(0.25mm).

Product Sizes: 8" x 16"(203mm x406mm)Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
