Used Between Heat Sinks And External Casings Excellent Thermal Impedance Thermal Conductive Graphite Sheet

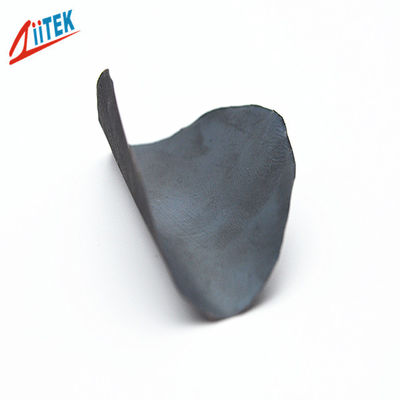

Large Image : Used Between Heat Sinks And External Casings Excellent Thermal Impedance Thermal Conductive Graphite Sheet

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TS-TIR300G-A1

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Product Name:	Used Between Heat Sinks And External Casings Excellent Thermal Impedance Thermal Conductive Graphite Sheet	Keywords:	Thermal Conductive Graphite Sheet
Thickness:	0.15mm /0.006 Inch	Density:	1.4 G/cc
Thermal Conductivity (Z Axis Direction):	2.0W/m-K	Hardness:	85 Shore A
Color:	Black	Application:	Between Heat Sinks And External Casings
Highlight:	Heat Sinks Graphite Sheet , Heat Sinks Thermal Graphite Sheet , Thermal Conductive Graphite Sheet

Used Between Heat Sinks And External Casings Excellent Thermal Impedance Thermal Conductive Graphite Sheet

TIR^®300G-A1 Series is a composite themal pad with added graphite,which has excellent thermal conductivity to effectively solve the common problem of thermal interfaces. This material uses a fiberglass-reinforced structure to ensure that it does not lose structural integrity during application. lt is easy to apply to different surfaces and is convenient to install. lt is commonly used between transistors and heat sinks,and between large assembly parts for thermal interface management.

Feature

> Excellent thermal impedance
> Replaces traditional thermal grease

> High reliability
> Easy to apply to surfaces

Application

> Between transistors and heat sinks

> Between mechanical structures

> Between heat sinks and externalcasings

Typical Properties of TIR^®300G-A1 series
Product Name	TIR^®304G-A1	TIR^®305G-A1	Test Method
Colour	Black		Visual
Reinforcement Carrier	Fiberglass		*****
Thickness range	0.13mm/0.005inch	0.15mm/0.006 inch	ASTM D374
Hardness	85 Shore 00		ASTM D2240
Density	1.4g/cc		ASTM D297
Volume Resistivity(ohm-cm)	10²		ASTM D257
Continuous Use Temperature	-60℃~ 180℃		Ziitek Test Method
Thermal Conductivity(W/mK)	2.0		ASTM D5470
Thermal impedance (℃-in²/W)@30psi	0.66	0.68	ASTM D5470
Thermal impedance (℃-in²/W)@50psi	0.34	0.36	ASTM D5470
180° Peel Strength	1.0N/25mm		ASTM D3330 (Steel,Immediate)

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
