CPU GPU Cooler Thermal Paste Compound Silicone Thermal Conductive Grease Insulation Material For Better Performance
The TIG™780-10 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issue.
TIG™780-10 is presenting thermal paste products. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance.Consequently, the heat dissipation efficiency is farsuperior to that offered by others.
TIG780-10 Series Datasheet-(E)-REV01.pdf
Features
> Low thermal resistance of 0.15 ℃-in² /W
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
Applications
> Semiconductor cases and heat sinks.
> Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices.
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| Typical Properties of TIG™780-10 Series |
| ProductName |
TIG™780-10 |
Test Method |
| Color |
White |
Visual |
| Construction & Compostion |
Metal oxide filler silicone oil |
****** |
| Specific Gravity(g/cm³) |
2.13 |
ASTM D297 |
| Viscosity(Pa.s @ 25℃) |
1000 |
Brookfield DV2T |
| Thermal Conductivity |
1.0W/mK |
ASTM D5470 |
| Bond line thickness(mm) |
0.012 |
ASTM D374 |
| Thermal lmpedance(℃.in²/W) @50psi |
0.015 |
ASTM D5470 |
| Continuous Use Temp (℃) |
-45~200℃ |
Ziitek Test Method |
| Evaporation(TML 200℃ @24 hrs) |
0.23% |
ASTM E595 |
Package
TIGTM780-10 Series is available in
1kg (pint container),
3kg (quart container),
10kg(gallon container)

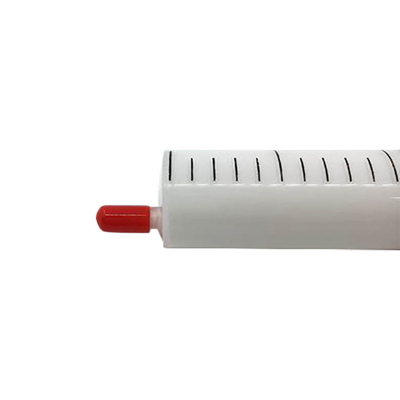

or custom packaged in syringes for automated applications.
Storage:
Store from 20C to 35°C with a maximum humidity of 50%. Do not store in freezer orrefrigerator below 10°℃.
Company profile
With professional R&D capabilities and over 19 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
