Thermal Conductive Gel Manufacturer , Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W

Large Image : Thermal Conductive Gel Manufacturer , Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF015-07

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000tubes
Delivery Time:	7-15work days
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Name:	Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel	Specific Gravity:	2.5 G/cm3
Color:	Green	Continuous Use Temperature:	-45~200℃
Good Thermal Conductive:	1.5 W/mK	Dielectic Breakdown:	200 V/mil
Flame Rating:	V-0	Keywords:	Thermal Conductive Gel
Highlight:	Thermal Conductive Gel Manufacturer , 1.5W Thermal Conductive Gel , Ultra-High Thermal Conductive Gel

Manufacturer Hot Sale Thermal Conductive Gel Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W Thermal Gel

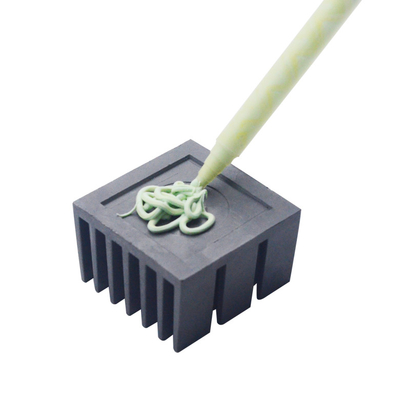

TIF^TM015-07 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIF^TM015-07 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.

TIF^TM015-07 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF015-07 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .

TIF015-07-Specification-sheet.-pdf.pdf

Application

> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions

Feature

> Thermal conductivity: 1.5W/mK

> Soft, very low compression

> Low thermal inpedance

> Operate automaticly

> Proven long-term reliability

TIF^TM015-07 Property
Color	Green	Visual
Construction & Composition	Ceramic filled silicon material	**********
Viscosity	4000 Pa.s	GB/T 10247
Specific Gravity	2.5 g/cc	ASTM D297
Thermal conductivity	1.5 W/mK	ISO 22007-2
Thermal diffusivity	0.847 mm2/s	ISO 22007-2
Specific heat capacity	2.2 MJ/m³K	ISO 22007-2
Continuous Use Temperature	-45 ~200°C	******
Dielectric breakdown strength	200 V/mil	ASTM D149
Flame Rating	94V0	E331100
Outgassing,%TML	0.90%	ASTM E595

Package :

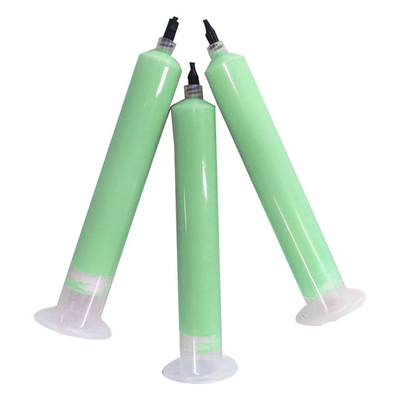

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Thermal Conductive Gel Manufacturer , Thermally Conductive Gel With Ultra-High Thermal Conductivity 1.5W 1

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
