Product Details:
Payment & Shipping Terms:
|
| Materials: | Carbon Nano Compper Foil Vacuum Sputtering | Color: | Black |
|---|---|---|---|
| Hardness: | 2.7 G/cc | Thermal Onductivity (Z Axis Direction): | 30W/m-K |
| Thermal Conductivity (X-Y Axis Direction): | 700W/m-K | Operating Temperature: | -40℃ ～400℃ |
| High Light: | High Temperature Resistant Graphite Sheet,Ultra Thin Graphite Sheet,Graphite Sheet Manufacturer |
||

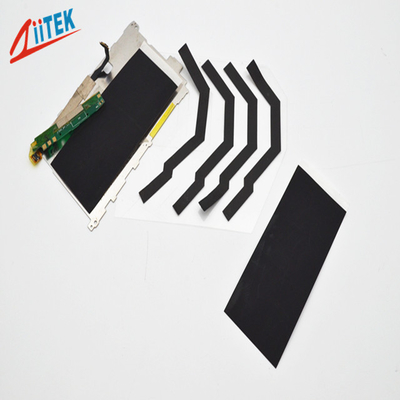

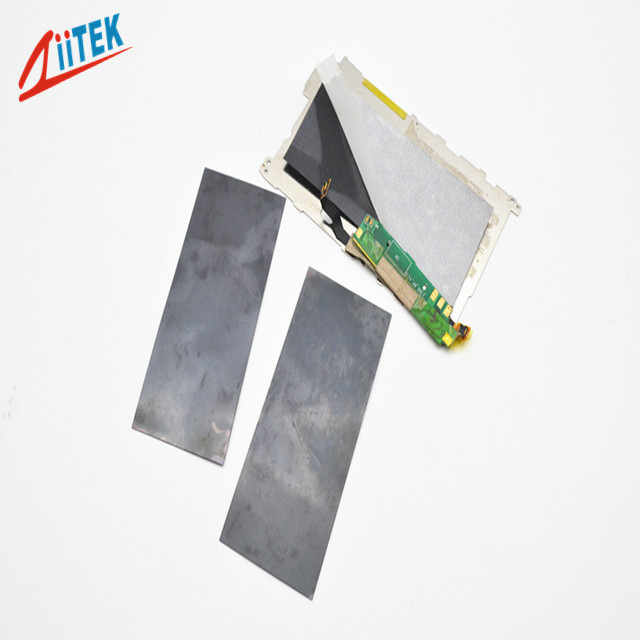

Manufacturer Ultra Thin High Temperature Resistant Graphite Sheet
TIR™300c Series products are a new material with highly effective heat conductivity andabsorption, stabilized device function and reduce the chance of malfunction by spreadingthe high temperature heat radiated from specific parts or devices.
TIR-300C-Series-Carbon-nano-composite-copper-foil-...
Features
| Good thermal conductive 700W/mK |
| Easy to assemble |
| RoHS compliant |
| Ultra-thin type |
Applications
| PDP, LCD TV, Set top box |
| Laptop, Notebook, Projector |
| Mobile phone, Hand-held devices |
| Automotive electronics |
| Typical Properties of TIR™300C series | ||||
| Product Name | TIR™340C-T2 | TIR™360-C-T2 | TIR™380-C-T2 | Test Method |
| Colour | Black | |||
| Material | Cearbon namo composite copper foil vacuum sputtering | |||
| Total Thickness | 0.040 mm | 0.060 mm | 0.080mm | ASTM D751 |
| Copper foil thickness | 0.038mm | 0.057mm | 0.077mm | ASTM D751 |
| Single-sided coating thickness | 0.0010mm | 0.0015mm | 0.0015mm | ASTM D751 |
| Thickness Tolerance | +/- 10% | +/- 10% | +/- 10% | ASTM D751 |
| Density | 2.7 g/cc | 2.7 g/cc | 2.7 g/cc | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 | ||
| Operation Temperature | -40℃~ 400℃ | ****** | ||
| Volume Resistivity | 5.2X10³ Ohm-meter | ASTM D257 | ||
| Tensile Strength | 30psi | 35psi | 40psi | ASTM D412 |
| Typical Thermal Conductivit (In Z axis) | 30W/m-K | 30W/m-K | 30W/m-K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 700W/m-K | 700W/m-K | 700W/m-K | ASTM D5470 |
| Thermal Resistance @100psi | 0.065 (in²℃/W) | 0.079 (in²℃/W) | 0.092 (in²℃/W) | ASTM D5470 |
Standard Sheets Sizes :
500mm*200m
TIR™300C series Individual die cut shapes can be supplied.
Consult the factory altermate thickness
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
