Product Details:
Payment & Shipping Terms:
|
| Certification: | UL | Name: | Thermal Pad 0.5mm Of Ultra Soft Gap Filler Thermal Conductive Silicone Pad For GPU Thermal Management Solutions |
|---|---|---|---|
| Thermal Conductivity: | 7.0 W/m-K | Material: | Silicone |
| Applications: | GPU CPU Cooling | Keyword: | Gap Filler Thermal Conductive Silicone Pad |
| Thickness: | 0.5mmT | ||
| High Light: | 0.5mm Gap filler,0.5mm thermal Pad,ultra soft Gap filler |
||

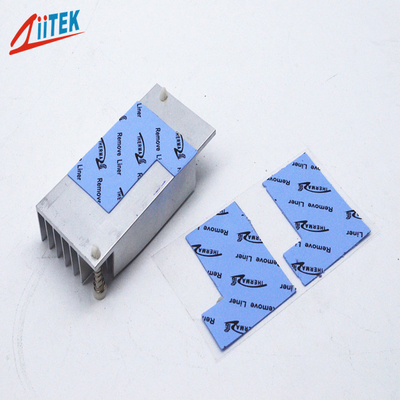

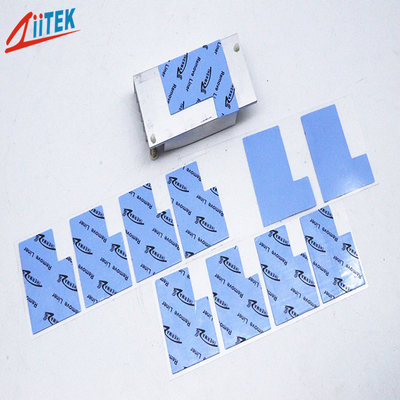

Thermal pad 0.5mm of ultra soft Gap filler Thermal Conductive Silicone Pad for GPU thermal management solutions
The TIF720HZ is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 7.0 W/mK
> Thickness: 0.5mmT
> hardness:55±5
> Colour: Blue
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight
> LED floor light
> Routers
|
Typical Properties of TIF720HZ Series
|
||||
|
Color
|
Blue |
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
3.45 g/cc |
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
0.5mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
55±5 |
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
| Thermal conductivity |
7.0W/mk
|
ASTMD5470
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4.5MHz |
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
≥ 1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
7.0 W/m-K |
GB-T32064
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ:
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
