Ultra Soft Thermal Pad With Outstanding Thermal Performance For Display Card

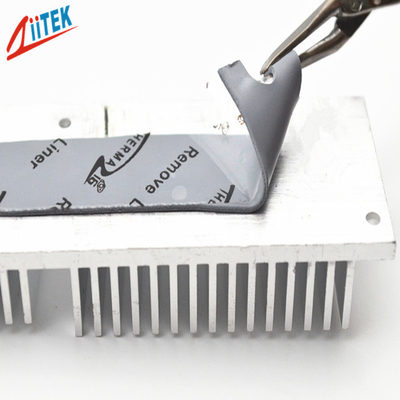

Large Image : Ultra Soft Thermal Pad With Outstanding Thermal Performance For Display Card

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF7100L-HM thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Name:	Ultra Soft Thermal Pad With Outstanding Thermal Performance For Display Card	Thickness:	2.5mmT
Keyword:	Silicone Thermal Pad	Applications:	Heat Pipe Thermal Solutions
Thermal Conductivity:	6.0 W/m-K	Material:	Silicone
Certification:	UL
Highlight:	Display Card Soft Thermal Pad , 30 Shore 00 Thermal Pad , 6.0W/mk Thermal Gap Pad

Ultra Soft Thermal Pad With Outstanding Thermal Performance For Display Card

The TIF7100L-HM use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

TIF700L-HM-Series-Datasheet-REV02.pdf

Features

> Good thermal conductive: 6.0 W/mK

> Thickness: 2.5mmT

> hardness:30 shore 00

> Colour: Grey

> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance

Applications

> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight
> LED floor light
> Routers

Typical Properties of TIF7100L-HM Series
Color	Grey	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.3 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	30 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Thermal conductivity	6.0W/mk	ASTMD5470	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.5MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	6.0 W/m-K	GB-T32064	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek Electronic Material and Technology Ltd,. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.
