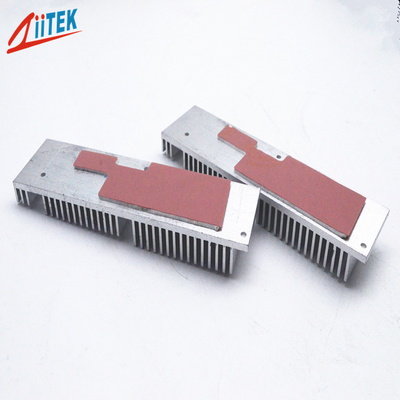

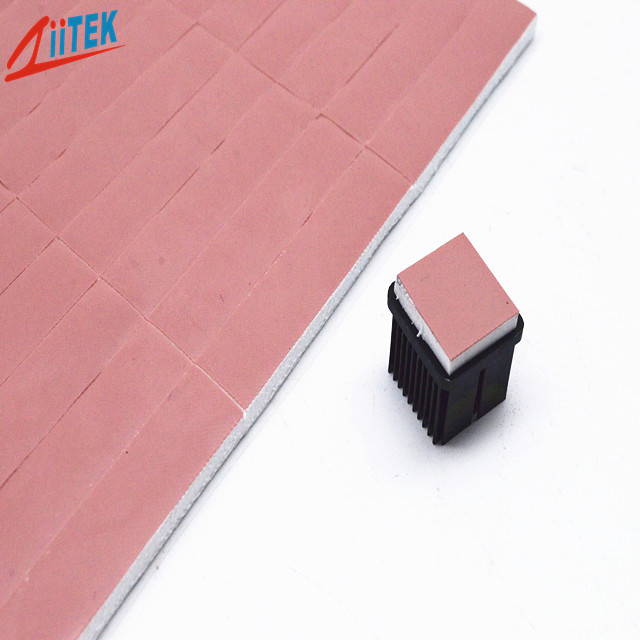

Hardness 10 Shore 00 Conductive Pads For AD DC Power Adapters

Hardness 10 Shore 00 Conductive Pads For AD DC Power Adapters
Hardness 10 Shore 00 Conductive Pads For AD DC Power Adapters
video play

Large Image :  Hardness 10 Shore 00 Conductive Pads For AD DC Power Adapters

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF220-20-02ES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Hardness: 10 Shore 00 Keyword: Thermal Gap Pad
Dielectric Constant: 5.0 MHz Name: Hardness 10 Shore 00 High Cost-effective Conductive Pads For AD-DC Power Adapters
Applications: Automotive Electronics Part Number: TIF220-20-02ES
Highlight:

10 Shore 00 Conductive Pads

,

DC Power Adapters Conductive Pads

,

Power Adapters Thermal Conductive Pad

Hardness 10 Shore 00 High Cost-effective Conductive Pads for AD-DC Power Adapters



     The TIF220-20-02ES  is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF220-20-02ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.



TIF200-20-02ES-Series-Datasheet.pdf



Features

> Good thermal conductive: 2.0 W/mK

>Thickness: 0.5mmT

>hardness:10 shore 00

>Colour: Pink/White

>Easy release construction
>Electrically isolating
>High durability









Applications

>LED Power Supply

>LED Controller

>LED Ceilinglamp

>Monitoring the Power Box

>AD-DC Power Adapters

>Rainproof LED Power



Typical Properties of TIF220-20-02ES  Series
Color
 Pink/White
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

 2.8 g/cm3
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
0.5mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

 10 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity
2.0W/mk
ISO22007-2.2
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5000 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

 5.0 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity



2.0 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470






























































Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Hardness 10 Shore 00 Conductive Pads For AD DC Power Adapters 0



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
