2.1 G/Cm^3 Construction Silicone Thermal Pads For Rainproof LED Power

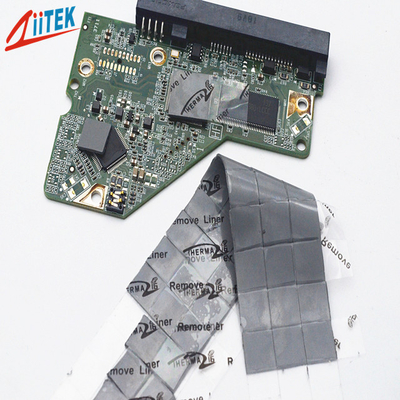

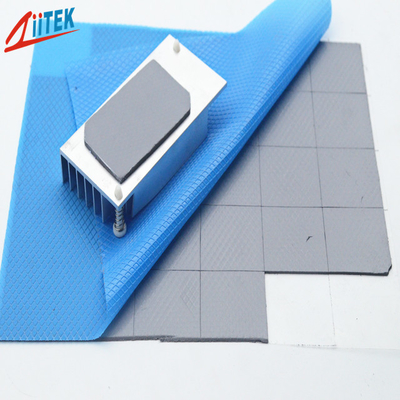

Large Image : 2.1 G/Cm^3 Construction Silicone Thermal Pads For Rainproof LED Power

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1100N-50-10F thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Hardness:	55±5 Shore 00	Name:	Specific Gravity 2.1 G/cm^3 Easy Release Construction Silicone Pads For Rainproof LED Power
Continuos Use Temp:	-40 To 160℃	Part Number:	TIF1100N-50-10F
Feature:	Moldability For Complex Parts	Keyword:	Thermal Gap Pad
Highlight:	Construction Silicone Thermal Pads , Rainproof Silicone Thermal Pads , Rainproof LED Power Silicone Pads

Specific gravity 2.1 g/cm^3 Easy Release Construction Silicone Pads for Rainproof LED Power

The TIF1100N-50-10F use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

TIF100N-40-10F-Specification-sheet.pdf

Features

> Good thermal conductive: 5.0 W/mK

> Thickness: 2.5mmT

> hardness:55±5 shore 00

> Colour: Gray

> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance

Applications

> LED Power Supply

> LED Controller

> LED Ceilinglamp

> Monitoring the Power Box

> AD-DC Power Adapters

> Rainproof LED Power

Typical Properties of TIF1100N-50-10F Series
Color	Gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	2.1 g/cm³	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	55±5 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Thermal conductivity	5.0W/mk	ISO22007-2.2	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.7 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	5.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

2.1 G/Cm^3 Construction Silicone Thermal Pads For Rainproof LED Power 0

FAQ:

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
