-40 To 160℃ High Cost Effective Thermal Conductive Pads For GPS Navigation

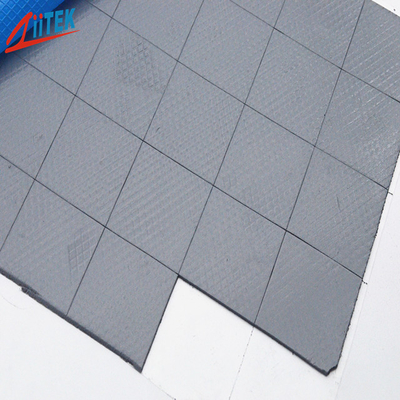

Large Image : -40 To 160℃ High Cost Effective Thermal Conductive Pads For GPS Navigation

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF180N-50-10F thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Continuos Use Temp:	-40 To 160℃	Certifications::	UL
Hardness:	55±5 Shore 00	Part Number:	TIF180N-50-10F
Keyword:	Thermal Gap Pad	Name:	-40 To 160℃ High Cost-effective Conductive Pads For GPS Navigation
Highlight:	GPS Navigation Conductive Pads , UL Thermal Conductive Pads , Gps Navigation Thermal Gap Filler

-40 to 160℃ High Cost-effective Conductive Pads for GPS Navigation

The TIF180N-50-10F thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

TIF100N-40-10F-Specification-sheet.pdf

Features

> Good thermal conductive: 5.0 W/mK

> Thickness: 2.0mmT

> hardness:55±5 shore 00

> Colour: Gray

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications

> Automotive electronics

> Set top boxes

> Audio and video components

> IT infrastructure

> GPS navigation and other portable devices

> CD-Rom, DVD-Rom cooling

Typical Properties of TIF180N-50-10F Series
Color	Gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	2.1 g/cm³	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	55±5 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Thermal conductivity	5.0W/mk	ISO22007-2.2	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.7 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	5.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

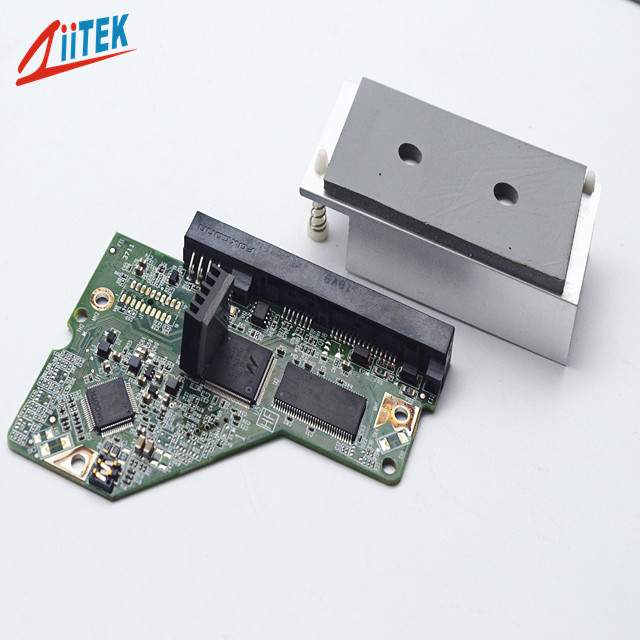

-40 To 160℃ High Cost Effective Thermal Conductive Pads For GPS Navigation 0

FAQ:

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
