Conductive TIF1200-05UF Heat Sink Pad 5mm For Automotive Electronics

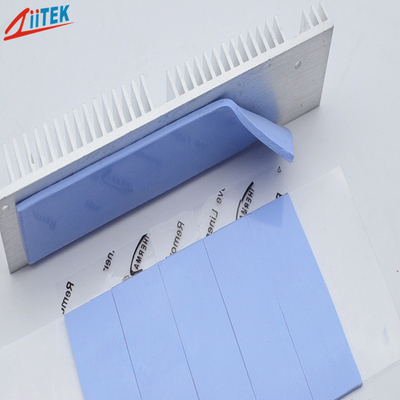

Large Image : Conductive TIF1200-05UF Heat Sink Pad 5mm For Automotive Electronics

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1200-05UF thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Name:	Good Thermal Conductive TIF1200-05UF Heat Sink Pad For Automotive Electronics	Thickness:	5.0mmT
Dielectric Breakdown Voltage:	>5500 VAC	Continuos Use Temp:	-40 To 160℃
Construction & Compostion:	Ceramic Filled Silicone Elastomer	Keyword:	Thermal Gap Pad
Highlight:	5mm thickness heat sink pad , Auto Electronics heat sink pad , 5mm thermal pad for heat sink

Good Thermal Conductive TIF1200-05UF Heat Sink Pad for Automotive Electronics

The TIF1200-05UF is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF1200-05UF is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive: 1.5 W/mK

>Thickness: 5.0mmT

>hardness:75 shore 00

>Colour: Blue

>Easy release construction
>Electrically isolating
>High durability

Applications

>Automotive electronics

>Set top boxes

>Audio and video components

>IT infrastructure

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

Typical Properties of TIF1200-05UF Series
Color	Blue	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	2.2 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	5.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	75 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	3.9 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With professional R&D capabilities and over 17 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

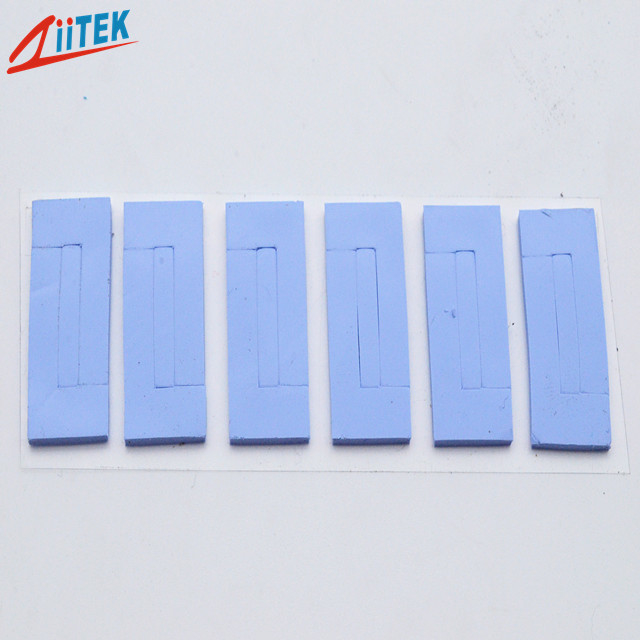

Conductive TIF1200-05UF Heat Sink Pad 5mm For Automotive Electronics 0

FAQ:

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online
