| Dielectric Breakdown Voltage: | >5500 VAC | Name: | 1.5W High Cost-effective Silicone Pads For LED Controller ,Outgasing 0.35% |
|---|---|---|---|
| Thickness: | 4.5mmT | Volume Resistiviyt: | 1.0X10^12 Ohm-cm |
| Specific Gravity: | 2.2 G/cc | Keyword: | Thermal Gap Pad |
| High Light: | 1.5w thermal gap pad,led controller thermal gap pad,1.5w thermally conductive gap filler pads |
||

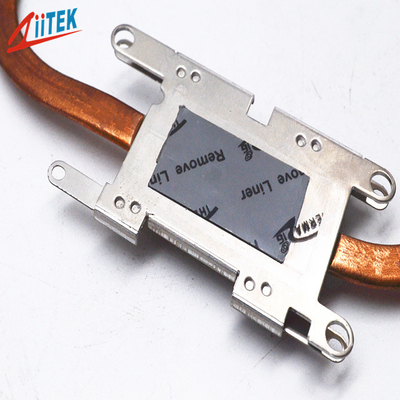

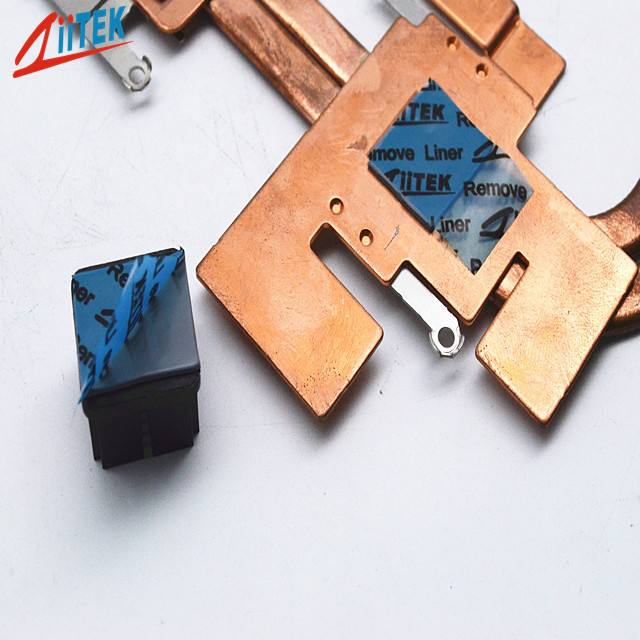

1.5W High Cost-effective Silicone Pads for LED Controller ,Outgasing 0.35%
The TIF1180-10UF is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
TIF100-10UF Datasheet-REV02.pdf
Features
> Good thermal conductive: 1.5 W/mK
>Thickness: 4.5mmT
>hardness:75 shore 00
>Colour: gray
>Naturally tacky needing no further adhesive coating
>Available in varies thicknesses
>Broad range of hardnesses available
Applications
>LED Power Supply
>LED Controller
>LED Ceilinglamp
>Monitoring the Power Box
>AD-DC Power Adapters
>Rainproof LED Power
|
Typical Properties of TIF1180-10UF Series
|
||||
|
Color
|
gray |
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
2.2 g/cc |
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
4.5mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
75 Shore 00 |
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
| Outgasing (TML) |
0.35%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
3.9 MHz |
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
1.5 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
