3.5mmt Blue Silicone Pads Thermal Conductivity 3.0 W/M-K For Notebook

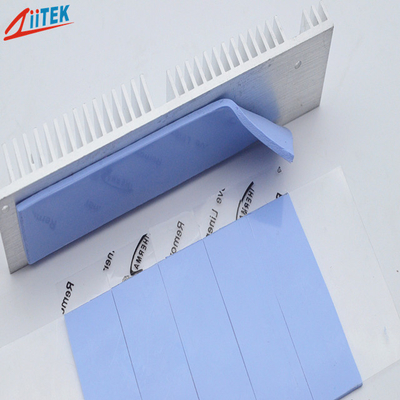

Large Image : 3.5mmt Blue Silicone Pads Thermal Conductivity 3.0 W/M-K For Notebook

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1140-30-05US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Dielectric Breakdown Voltage:	94 V0	Fire Rating:	18 Shore 00
Keyword:	Thermal Gap Pad	Application:	Power Supply
Name:	3.5mmT Low Cost Blue Silicone Pads For Notebook，Thermal Conductivity 3.0 W/m-K	Volume Resistivity:	1.0X1012 Ohm-cm
Highlight:	3.5mmt thermal gap filler material , notebook thermal gap filler material , gap pad thermal conductivity 3.0 w mk

3.5mmT low cost blue silicone pads for notebook,Thermal conductivity 3.0 W/m-K

The TIF1140-30-05US thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features

> Good thermal conductive: 3.0 W/mK

>Thickness:3.5mmT

>hardness:18 shore 00

>Colour: blue

>Outstanding thermal performance

>High tack surface reduces contact resistance

>RoHS compliant

Applications

>mainboard/mother board

>notebook

>power supply

>Heat pipe thermal solutions

>Memory Modules

>Mass storage devices

Typical Properties of TIF1140-30-05US Series
Color	blue	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.0g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	3.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	18 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.0 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	3.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
