Professional Ul Thermally Conductive Gap Filler Pads Silicone For Routers And Cpu

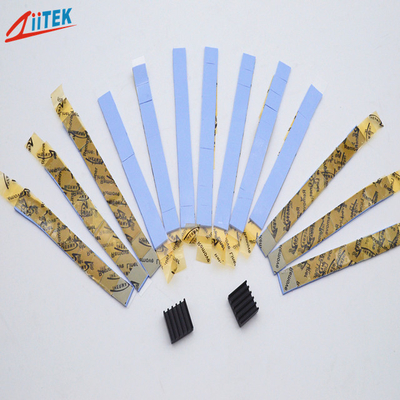

Large Image : Professional Ul Thermally Conductive Gap Filler Pads Silicone For Routers And Cpu

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF160-30-05US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Keyword:	Thermal Gap Pad	Construction & Compostion:	Ceramic Filled Silicone Elastomer
Thickness:	1.5mmT	Thermal Conductive:	3.0 W/mK
Name:	Professional UL Recognized Silicone Pads For Routers And CPU	Continuos Use Temp:	-40 To 160℃
Highlight:	3.0 w mk thermally conductive gap filler pads , cpu thermally conductive gap filler pads , 3.0 w mk thermal conductivity pad

professional UL recognized silicone pads for routers and CPU

The TIF160-30-05US thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features

> Good thermal conductive: 3.0 W/mK

>Thickness:1.5mmT

>hardness:18 shore 00

>Colour: blue

>RoHS compliant

>UL recognized

>Easy release construction

Applications

>Automotive electronics

>Set top boxes

>Audio and video components

>IT infrastructure

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

Typical Properties of TIF160-30-05US Series
Color	blue	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.0g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	1.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	18 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.0 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	3.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.
