| Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 3.0 W/m-K |
|---|---|---|---|
| Hardness: | 18 Shore 00 | Density: | 3.0 G/cc |
| Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
| High Light: | audio gap pad thermal conductivity,electrically isolating silicone gap pad,video components gap pad |
||
high cost-effective UL recognized Electrically isolating silicone pads for Audio and video components , 18 Shore 00

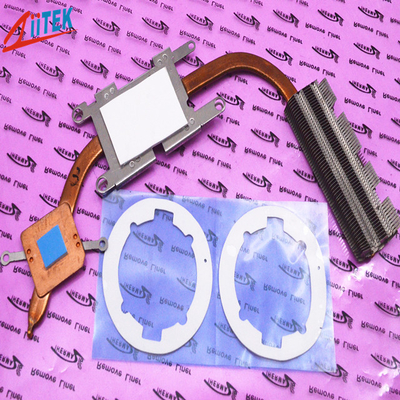

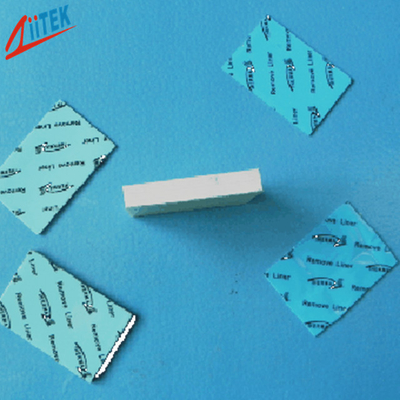

The TIF1140-30-06US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features
> Good thermal conductive: 3.0 W/mK
>Thickness:3.5mmT
>hardness:18 shore00
>Colour: white
>Naturally tacky needing no further adhesive coating
>Available in varies thicknesses
>Broad range of hardnesses available
Applications
>LED Power Supply
>LED Controller
>LED Ceilinglamp
>Monitoring the Power Box
>AD-DC Power Adapters
>Rainproof LED Power
|
Typical Properties of TIF1140-30-06US Series
|
||||
|
Color
|
white
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
3.0g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
3.5mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
18 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
|
Outgassing(TML)
|
0.35%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4.0 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
3.0 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
