Product Details:
Payment & Shipping Terms:
|
Products Name: | 1.5W Thermal Pad On PC Cooling | Thickness: | 1mmT |
---|---|---|---|
Fire Rating: | 94-V0 | Color: | Gray |
Hardness: | 60 Shore 00 | Outgassing: | 0.35% |
Thermal Conductivity: | 1.5W/m-K | Keywords: | Thermal Pads |
Highlight: | 1.5W/MK Thermally Conductive Foam Pad,Thermally Conductive Foam Pad 1mmT,50 Shore 00 Thermal Conductive Pad |

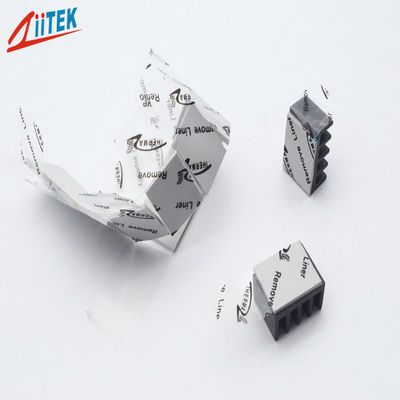

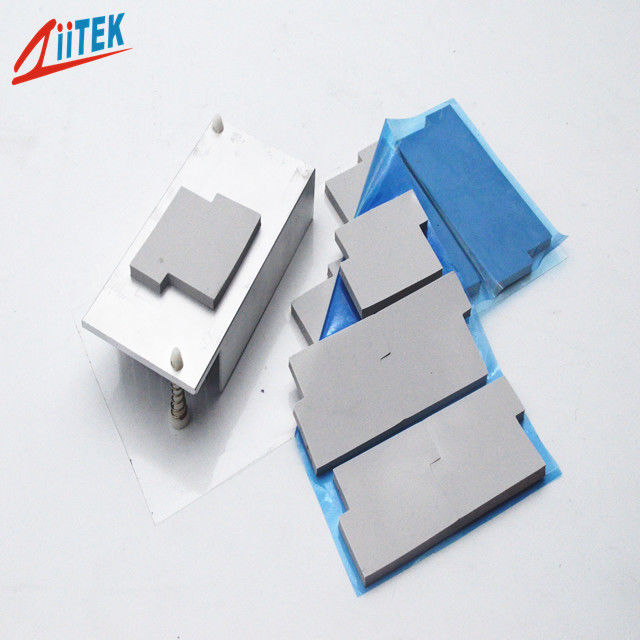

1.5W Thermal Pads On PC Cooling
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
The TIF140-02F Series is an extremely soft gap filling material rated at a thermal conductivity of 1.5W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. Ziitek TIF140-02F is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.
Features:
> Moldability for complex parts 1.5 W/mK
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance
> Easy release construction
Applications
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
Typical Properties of TIF140-02F Series
|
||||
Color
|
Gray |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***** | 10mils / 0.254 mm |
0.48 |
20mils / 0.508 mm |
0.56 |
|||
Specific Gravity
|
2.3 g/cc |
ASTM D297 |
30mils / 0.762 mm |
0.71 |
40mils / 1.016 mm |
0.80 |
|||
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
0.91 |
60mils / 1.524 mm |
0.94 |
|||
Hardness
|
60 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
1.05 |
80mils / 2.032 mm |
1.15 |
|||
Tensile Strength
|
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.25 |
100mils / 2.540 mm |
1.34 |
|||
Continuos Use Temp
|
-40 to 160℃ |
***** |
110mils / 2.794 mm |
1.43 |
120mils / 3.048 mm |
1.52 |
|||
Dielectric Breakdown Voltage
|
>5500 VAC | ASTM D149 |
130mils / 3.302mm |
1.63 |
140mils / 3.556 mm |
1.71 |
|||
Dielectric Constant
|
4.0 MHz | ASTM D150 |
150mils / 3.810 mm |
1.81 |
160mils / 4.064 mm |
1.89 | |||
Volume Resistivity
|
1.0X10¹² Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.98 |
180mils / 4.572 mm |
2.07 |
|||
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
2.14 |
200mils / 5.080 mm |
2.22 |
|||
Thermal conductivity
|
1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
