Product Details:
Payment & Shipping Terms:
|
| Thickness: | 1mmT | Product Name: | TIF120-02F |
|---|---|---|---|
| Fire Rating: | 94-V0 | Color: | Gray White |
| Hardness: | 50 Shore 00 | Outgassing: | 0.30% |
| High Light: | 1.5W/MK Thermally Conductive Foam Pad,Thermally Conductive Foam Pad 1mmT,50 Shore 00 Thermal Conductive Pad |
||

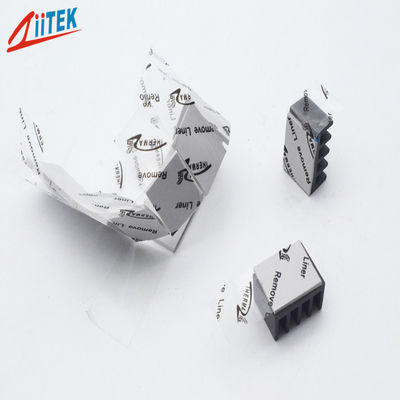

1.5w/m.k gray compressible Thermally Conductivefoam pad 1mmT TIF140-02F for cooling components to the chassis of frame
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
The TIF140-02F Series features an inherent tack on both sides of the material, eliminating the need for thermally impeding adhesive layers.Options and ConfigurationsStandard sheet size - 8" x 16" or custom configurationStandard thickness available - 0.020", 0.040", 0.060", 0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made configurations available upon request.
Features:
| Moldability for complex parts 1.5 W/mK |
| Outstanding thermal performance |
| High tack surface reduces contact resistance |
| RoHS compliant |
| UL recognized |
| Fiberglass reinforced for puncture, shear and tear resistance |
| Easy release construction |
Applications
| Set top boxes |
| Audio and video components |
| IT infrastructure |
| GPS navigation and other portable devices |
| CD-Rom, DVD-Rom cooling |
| LED Power Supply |
| LED Controller |
| LED Ceilinglamp |
| Monitoring the Power Box |
| AD-DC Power Adapters |
|
Typical Properties of TIF140-02F Series
|
||||
|
Color
|
gray white |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
*** | 10mils / 0.254 mm |
0.48 |
| 20mils / 0.508 mm |
0.56 |
|||
|
Specific Gravity
|
2.23 g/cc |
ASTM D297 |
30mils / 0.762 mm |
0.71 |
|
40mils / 1.016 mm |
0.80 |
|||
|
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
0.91 |
|
60mils / 1.524 mm |
0.94 |
|||
|
Hardness
|
55 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
1.05 |
|
80mils / 2.032 mm |
1.15 |
|||
|
Tensile Strength
|
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.25 |
|
100mils / 2.540 mm |
1.34 |
|||
|
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
1.43 |
|
120mils / 3.048 mm |
1.52 |
|||
|
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.63 |
|
140mils / 3.556 mm |
1.71 |
|||
|
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.81 |
|
160mils / 4.064 mm |
1.89 | |||
|
Volume Resistivity
|
4.0X10" Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.98 |
|
180mils / 4.572 mm |
2.07 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
2.14 |
|
200mils / 5.080 mm |
2.22 |
|||
|
Thermal conductivity
|
1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
