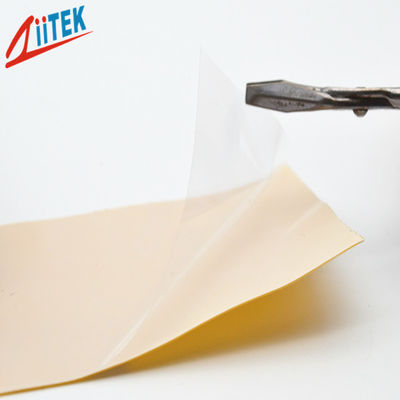

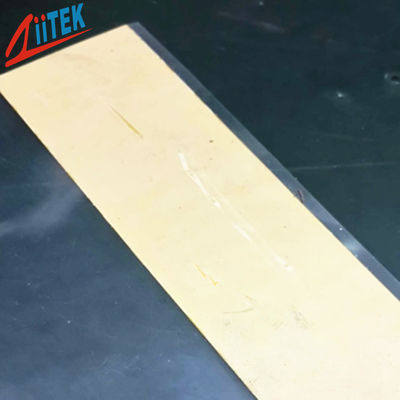

0.152mm Thickness UL 94 V-0 Thermal Conductive Electric Isolating Sheets With 1.6 W/Mk Conductivity For CPU IGBTs
The TIS®806K series is a thermal silicone product featuring a ceramic-filled layer coated on a polyimide film, offering excellent thermal conductivity and heat transfer performance.The TIS®806K model is designed for screw-mounted applications on device openings, with the composite polyimide fim providing superior dielectric insulation. lts soft thermal coating enhances gap-filling capability and improves handling during assembly.
Feature
> Relatively soft surface,good thermal conductivity
> High voltage insulation,low thermal resistance
> Tear-resistant and puncture-resistant
Application
> Power supplies and automotive battery packs
> Power semiconductor devices
> Audio-visual products
> Charging stations
| Typical Properties of TIS®806K series |
| Product Name |
TIS®806K |
Test Method |
| Color |
Light Amber |
Visual |
| Polyimide Film Thickness (inch/mm) |
0.001"/0.025mm |
ASTM D374 |
| Total Thickness (inch/mm) |
0.006"/0.152mm |
ASTM D374 |
| Density |
2.0 g/cc |
ASTM D792 |
| Tensile Strength (Mpa) |
10 |
ASTM D751 |
| Recommended Operating Temperature (℃) |
-45~160 |
Ziitek test Method |
| Dielectric Breakdown Voltage |
6500 VAC |
ASTM D149 |
| Dielectric Constant @1MHz |
3.8 MHz |
ASTM D150 |
| Volume Resistivity (Ohm.cm) |
3.5X1013Ohm-meter |
ASTM D257 |
| Thermal conductivity |
1.3 W/mK |
ASTM D5470 |
| Flame Rating |
V-0 |
UL 94 |
Standard Thicknesses:
0.006" (0.152 mm), 0.008" (0.203 mm), 0.010" (0.254 mm)
For other thickness options, please contact us.
Standard Size:10”x100(254 mmx25.4m).

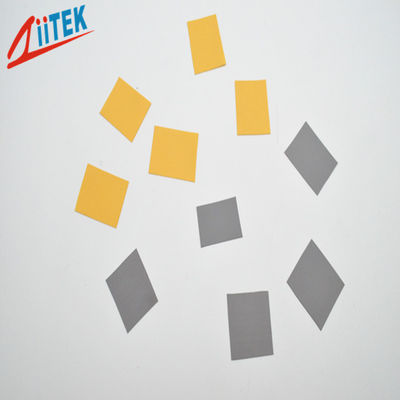

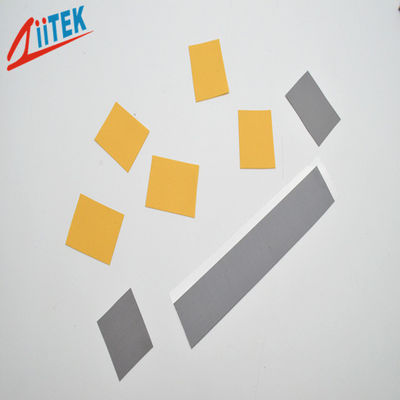

The TIS800K seriescanbe die-cut into variousshapes for supply.
